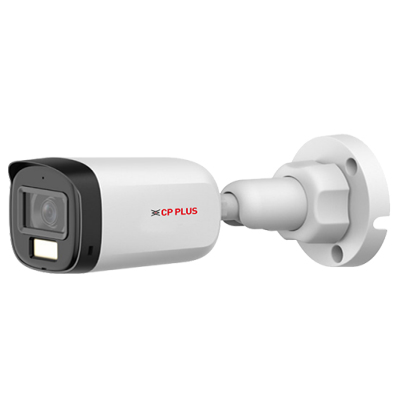

CP-URC-TC51PL3C-L
1/2.7” 5MP PS CMOS Image Sensor (0.9407 centimetres)
DWDR, Day/Night (ICR), 2D DNR,BLC, HLC
3.6mm fixed lens (2.8 mm, 6mm optional)
IR Range of 30 Mtrs., Warm Light Range of 20 Mtrs., IP67
4 Signals over 1 Coaxial Cable
Support Built-in Mic
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Image Sensor | 1/2.7” 5MP PS CMOS Image Sensor (0.9407 centimetres) |
| Minimum Illumination | 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| White Balance | Auto, Area white balance |
| Gain Control (AGC) | Auto |
| DORI Distance | 3.6 mm: Detect: 76.0 Mtr., Observe-30.4 Mtr., Recognize: 15.2 Mtr., Identify: 7.6 Mtr. 2.8 mm: Detect: 66.0 Mtr., Observe: 26.4 Mtr., Recognize: 13.2 Mtr., Identify: 6.6 Mtr. 6 mm: Detect: 120.0 Mtr. , Observe: 48.0 Mtr. , Recognize: 24.0 Mtr., Identify : 12.0 Mtr. |
| Lens Type | Fixed-focal |
| Max. Aperture | F2.0 |
| Lens Mount | M12 |
| Close Focus Distance | 3.6mm: 1.3Mtr., 2.8mm: 1.0Mtr., 6mm: 2.8Mtr. |
| Lens | 3.6mm, 6mm(2.8mm optional) |
| Back Light Compensation | BLC/HLC/DWDR |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Angle of view | 2.8 mm: H: 106°, V: 56°, D: 125° 3.6 mm: H: 92°, V: 48°, D: 109° 6 mm: H: 54°, V: 29°, D: 62° |
| S/N Ratio | >65 dB |
| Resolution | 5M (2880 × 1620), 4M (2560 × 1440), 2MP (1920 × 1080), 960H (960 × 576/960 × 480) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Video Streaming | CVI: PAL: 5M@25 fps, 4M@25 fps, 2M@25 fps, NTSC: 5M@25 fps, 4M@30 fps, 2M@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps, TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps, CVBS: PAL: 960H, NTSC: 960H |
| Noise Reduction | 2D NR |
| Privacy Mask | Off/On (8 areas, rectangle) |
| Day/Night | Auto(ICR)/Color/B/W |
| Mirror Function | Support |
| IR | IR Range of 30 Mtr., |
| IR Control | Auto, Manual |
| Warm Light Range | Warm Light Range of 20 Mtr. |
| IR Mode | Smart IR&WL, WL Mode, IR Mode |
| Dual LED Number | 2 (Warm light) + 2 (IR light) |
| Iris Control | Fixed |
| Anti-corrosion Level | Basic Protection |
| Audio | Built-in Mic |
| Weatherproof Standard | IP67 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Power Source | 12VDC ±30% |
| Power Consumption | Max 4.0 W (12V DC, WLED on) |
| Casing | Plastic |
| Dimension | 146.1mm × 70.0mm × 69.8mm |
| Weight | 0.17kg. |
