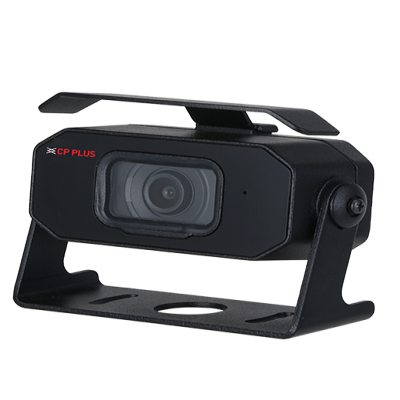

CP-USC-CC24L2C
- 1/2.7” 2.4 MP Progressive CMOS Image Sensor(0.9407cm)
- CVI/CVBS/AHD/TVI switchable
- Max 30fps@2.4MP
- 2.8mm fixed lens (2.1mm optional)
- DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
- Built-in Mic
- IR Max. length 20m, Smart IR
- Built-in 1/1 alarm in/out
- IP67, Shock-proof
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Image Sensor | 1/2.7″ 2.4MP Progressive CMOS Sensor(0.9407cm) |
| Minimum Illumination | 0.02 Lux/F2.0, 30IRE, 0 Lux IR on |
| S/N Ratio | More than 65dB |
| Shutter Speed | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
| Gain Control (AGC) | AGC |
| White Balance | Auto / Manual |
| Back Light Compensation | BLC / HLC / DWDR |
| Lens | 2.8mm (2.1mm optional |
| Iris | Fixed iris |
| Lens Type | Fixed-focal |
| Max Aperture | 2.8mm: F2.0 2.1mm: F2.0 |
| Angle of View | 2.8mm: H: 106°; V: 55°; D: 126°, 2.1mm: H: 133°; V: 77°; D: 153° |
| ICR | Auto switch (ICR) |
| DORI Distance | 2.8mm : 38.6m (Detect) 15.4m (Observe) 7.7m (Recognize) 3.9m (Identify) 2.1mm : 31.3m (Detect) 12.5m (Observe) 6.3m (Recognize) 3.1m (Identify) |
| Close Focus Distance | 2.8mm: 0.5m (1.64 ft), 2.1mm: 0.3m (0.98 ft) |
| Video Streaming | CVI: 2.4MP@25/30fps; 720p@25/30fps; 720p@50/60fps, AHD: 2.4MP@25/30fps; 720p@25/30fps, TVI: 2.4MP@25/30fps; 720p@25/30fps; 720p@50/60fps, CVBS: 960H |
| Audio | Built-in Mic |
| IR | IR Range of 20 Mtr., Smart IR |
| Weatherproof Standard | IP67, Shock-Proof |
| Casing | Metal |
| Operating Temperature | -40°C to +60°C (–40°F to 140°F) |
| Humidity | <95% (non-condensation) |
| Power Source | 12V DC ±30% |
| Power Consumption | Max 2.3W (12V DC, IR on) |
| Dimension | 107.3mm × 74.9mm × 54.5mm |
| Weight | 0.33kg |
