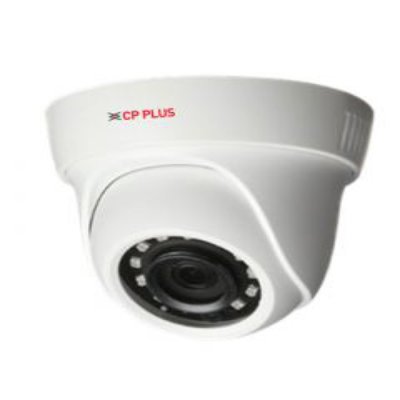

CP-USC-DA24L2
1/2.7″ 2.4MP PS CMOS Image Sensor (0.9407 centimeters)
Max 25/30fps@2.4MP
DWDR, Day/Night(ICR), 2D-DNR, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm optional)
IR Range of 20 Mtrs., IP67
OSD Menu, control over coaxial cable, 2D-DNR
HD, SD and Two other Analog format Output switchable
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Image Sensor | 1/2.7″ 2.4MP PS CMOS Image Sensor (6.858 centimeters) |
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
| Effective Pixels | 2.4MP |
| BodyType | Dome |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| White Balance | Auto / Manual |
| Lens | 3.6mm (2.8mm Optional) |
| Gain Control (AGC) | Auto / Manual |
| Angle of View | H: 87.5° (103°) |
| S/N Ratio | More than 65dB |
| Back Light Comp. | BLC / HLC / DWDR |
| OSD | Multi-language |
| Video Streaming | 25/30fps@2.4MP, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| ICR | Auto (ICR) / Manual |
| IR Range | IR Range of 20 Mtr. |
| Operating Temperature | -40°C~+60°C / Less than 95%RH |
| Power Source | 12V DC ±30% |
| Power Consumption | Max 3.3W (12V DC, IR on) |
| Weatherproof Standard | IP67 |
| Dimension | Φ97mm×79.3mm |
| Weight | 0.17kg |
