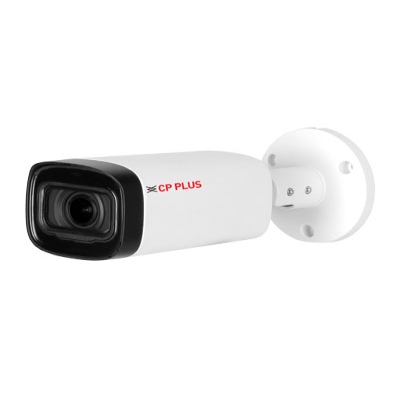

CP-USC-TD24FL6-V3
1/2.7” 2.4MP CMOS Image Sensor (0.9407cm)
Max. 30fps@2.4MP
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
2.7mm~12mm Varifocal Lens
IR Range of 60 Mtrs., IP67
HD and SD output Switchable
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Image Sensor | 1/2.7” 2.4MP CMOS Image Sensor (0.9407cm) |
| Minimum Illumination | 0.04Lux/F1.8, 30IRE, 0Lux IR on |
| Shutter Speed | PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s |
| White Balance | Auto / Manual |
| Gain Control (AGC) | Auto / Manual |
| ICR | Auto (ICR)/Manual |
| Lens | 2.7mm~12mm Varifocal |
| Max Aperture | F1.8 |
| Lens Type | Vari-Focal |
| Close Focus Distance | 500mm ; 19.7” |
| Mount Type | Board-in |
| S/N Ratio | More than 65dB |
| DORI Distance | 25m (Detect) 63m(Observe) 125m(Recognize) 250m(Identify) |
| Back Light Compensation | BLC / HLC / DWDR |
| Video Streaming | 25/30fps@2.4MP, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Angle of View | H: 106°~33° ; V: 56°~19° |
| IR | IR Range of 60 Mtr., Smart IR |
| OSD | Multi-language |
| Casing | Aluminium |
| Operating Temperature | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Power Source | 12V DC ±30% |
| Power Consumption | Max 4.6W (12V DC, IR on) |
| Weatherproof Standard | IP67 |
| Dimension | 209.8mm×90.4mm×90.4mm |
| Weight | 0.59kg |
