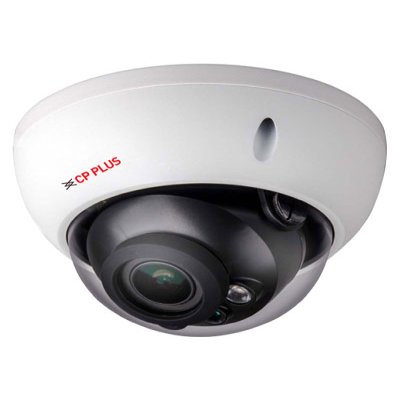

CP-USC-VA24ZR3
1/2.7″ 2.4MP PS CMOS Image Sensor (0.9407 centimeters)
Max 25/30fps@2.4MP
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
2.7mm~12mm Motorized Lens
IR Range of 30Mtrs., Smart IR, IP67, IK10
OSD Menu, control over coaxial cable, 2D-DNR
CVI/CVBS/AHD/TVI switchable
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Image Sensor | 1/2.7″ 2.4MP PS CMOS (0.9407 centimeters) |
| Minimum Illumination | 0.02Lux/F1.7, 30IRE, 0Lux IR on |
| Shutter Speed | PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s |
| White Balance | Auto / Manual |
| Gain Control (AGC) | Auto / Manual |
| ICR | Auto switch by ICR |
| Lens | 2.7~12mm |
| Max Aperture | F1.7 |
| Close Focus Distance | 1.2m |
| Iris | Fixed Iris |
| Privacy Mask | Off/On (8 area, rectangle) |
| Mount Type | φ14 |
| Lens Type | Motorized |
| S/N Ratio | >65dB |
| DORI Distance | 2.7mm: 49.7m(Detect); 19.9m(Observe); 9.9m(Recognize); 5m (Identify) 12mm: 82.8m(Detect); 33.1m(Observe); 16.6m(Recognize); 8.3m (Identify) |
| Back Light Compensation | BLC / HLC / DWDR |
| Video Streaming | CVI: 2.4MP@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 2.4MP@25/30fps; 720P@25/30fps; TVI: 2.4MP@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Angle of View | Diagonal: 38°– 125° Horizontal: 33°–102° Vertical: 19°– 53° |
| IR | IR Range of 30 Mtr., Smart IR |
| Casing | Plastic dome cover + metal upper casing + metal pedestal |
| Operating Temperature | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% (non-condensation) |
| Power Source | 12V DC ±30% |
| Power Consumption | Max 6.3W (12V DC, IR on) |
| Weatherproof Standard | IP67 & IK10 |
| Dimension | φ122.0 mm × 88.9 mm |
| Weight | 0.44 kg |
