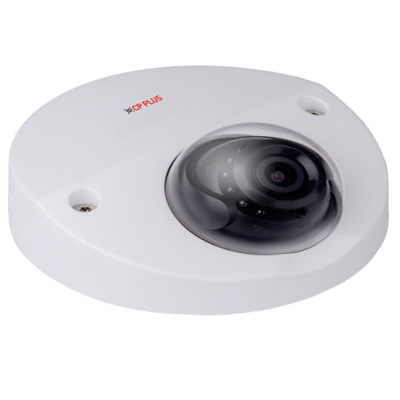

CP-USC-WB24L2C-D
- 1/2.8″ 2.4MP CMOS Image Sensor (0.9071 centimeters)
- Max 30fps@2.4MP
- WDR(120dB), Day/Night(ICR), 3D/2D-DNR, AWB, AGC, BLC, HLC
- 3.6mm fixed lens (2.8mm Optional)
- IR Range of 20 Mtrs., Smart IR, IP67, IK10
- IP6K9K, Shock-proof
- Audio in interface, Support Built-in Mic
- HDCVI output (Aviation connector)
- HD, SD and Two Analog format Output
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Image Sensor | 1/2.8″ 2.4MP PS CMOS (0.9071 centimeters) |
| Minimum Illumination | 0.004Lux/F1.6, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| Shutter Speed | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| Gain Control (AGC) | AGC |
| White Balance | Auto / Manual |
| Back Light Compensation | BLC / HLC / WDR (120dB) |
| Lens | 3.6mm (2.8mm Optional) |
| Iris | Fixed |
| Lens Type | Fixed |
| Max Aperture | F1.6 |
| Angle of View | H: 86.9° (110°) |
| ICR | Auto (ICR) / Manual |
| DORI Distance | 2.8mm- 39m (Detect) 15m(Observe) 8m(Recognize) 4m(Identify) 3.6mm- 55m (Detect) 22m(Observe) 11m(Recognize) 6m(Identify) |
| Close Focus Distance | 1200mm (500mm); 47.2” (19.7”) |
| Video Streaming | 25/30fps@1080P, 25/30/50/60fps@720P |
| Audio | Built-in Mic |
| IR | IR Range of 20 Mtr., Smart IR |
| Audio Input | 1 Ch. |
| Weatherproof Standard | IP67 & IK10 |
| Casing | Aluminium |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Humidity | Less than 90% RH |
| Power Source | 12V DC ±30% |
| Power Consumption | Max. 3.6W |
| Dimension | Φ106mm×50.3mm |
| Weight | 0.31kg |
