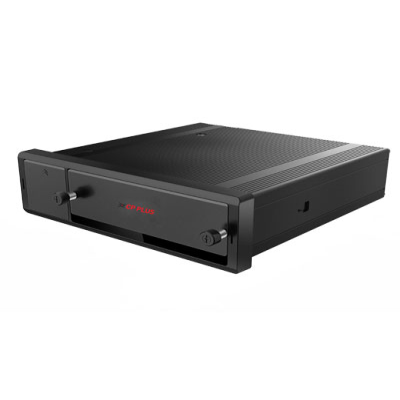

CP-UVR-0401E1-PG
- Support 4 channels 1080P Realtime Recording
- Support H.265/smart H.265 video compression
- Support Penta-Brid (HDCVI/AHD/TVI/CVBS/IP) video input
- Aviation connectors adopted
- Support 1 HDD and 1 SD card, 3 USB Ports (2.0)
- VGA/TV simultaneous video output
- Micro SD card, Up to 256GB
- Support Face Detection
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Embedded microprocessor |
| Two-way Talk | 1 channel Input, 1 channel Output |
| User Interface | GUI |
| Video Output | 1 VGA, 2 TV |
| Video Resolution | 800×600 |
| Video Compression | H.265/smart H.265 /H.264/smart H.264 |
| Resolution | 4 ch@1080P Realtime Recording |
| Motion Detection | MD Zones:396(PAL:22×18,NT SC:22×15) |
| Video Display Split | 1/4/8/9 |
| Video Loss | Supports |
| Camera Blank | Supports |
| Audio Compression | G.711A/G.711U/PCM |
| Alarm Input | 9 channels, Alarm1–8 are local alarm input, Alarm 9 is pulse input. |
| Alarm Output | 2 channels, 1 relay out, 1 Controllable 12V out |
| Hard Disk | 1 SATA |
| Smart Phone | iPhone, iPad, Android Phone |
| Trigger Events | Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips |
| Memory | 1 SD card, Up to 256 GB |
| Recording Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Search Mode | Time/Date, Alarm, Motion Detection & Exact search (accurate to second) |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom |
| Backup Mode | USB Device/Network |
| User Account | 128 users |
| Interface Ports | 3 USB 2.0, 2 Port RS232, 1 Port RS485, Heater (Optional) |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | 1 RJ-45 Port (10/100Mbps) and 1 6-pin aviation connector |
| Protocols | TCP/IP, UDP, DHCP, FTP, Email, Alarm Server |
| Power Supply | DC 6V~36V |
| Power Consumption | <8.4W (Without HDD) |
| Working Temperature | -30°C (with heater)~ +70°C (-22°F ~ +158°F) |
| Working Humidity | 10 ~ 90% RH |
| Dimension | 180mm×190mm×50mm |
| Net Weight | 1.92Kg (without HDD) |
