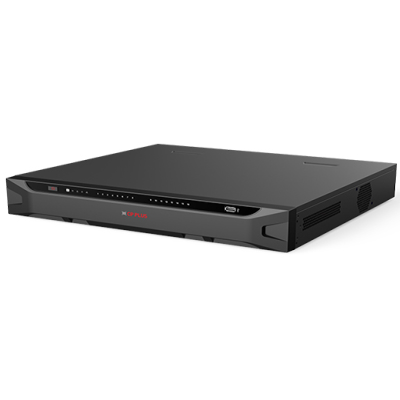

CP-UVR-0804K4-I3-V3
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max. 12 Channels IP camera inputs, Each channel up to 6MP, Max. 64 Mbps incoming bandwidth, 64 Mbps outgoing bandwidth, 64 recording bandwidth
- Supports all Channel AI Coding
- Support 4 SATA HDD up to 16TB Each, 3 USB Ports
- Up to 4 Channels video stream (analog channel) perimeter protection
- Up to 2 Channels video stream (analog channel) human face recognition
- Mobile Software: iCMOB, gCMOB
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| User Interface | Web, Local GUI |
| Video Output | 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| IP Camera Input | Up to 12 Channels of IPC access 4 IP Channels by default + 8 Channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, Recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. |
| Analog Camera Input | 8 BNC ports, Supports HDCVI/AHD/TVI/CVBS autodetect |
| HD Camera Input | 1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps. 2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps |
| stream Capability | Dual stream |
| Video Streaming | Main stream: 5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@ (1-12fps) 5M-N Mode: All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps) Sub stream: D1, CIF@(1–15fps) |
| Video Display Split | When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16 |
| Record Mode | General, Motion detection, Intelligent, Alarm, |
| Bit Rate | 32 kbps – 6144 kbps |
| Video Compression | Instastream, H.265, H.264+, H.264 |
| Hard Disk | 4 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature |
| Audio Bit Rate | 64 Kbps Per Channel |
| Intelligent Alarm | Face detection, Face recognition, Perimeter |
| Face Database Capacity | Up to 10 face databases with 0,000 face images in total. Name, Gender, Birthday, Address, Certificate type, Certificate No., Countries & Regions and state can be added to each face image |
| Recording Playback | 1/4/9 It changes to 1/4/6 split when Face or IVS & SMD is selected in AI Mode |
| Backup Mode | USB device and network |
| Interface Ports | 3 (1 front USB 2.0 port, 2 rear USB 2.0 ports), 1 RS485 Port (for PTZ control), 1 RS232 (1 port, for PC Communication & Keyboard), 1 eSATA |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, InstaOn, Auto Registration, ONVIF 22.12(Profile T, Profile S, Profile G), CGI, SDK |
| Audio Compression | G.711a, G.711u, PCM, |
| Audio Output | 1 Channel BNC |
| Audio Input | 4 Channel BNC, 8 Channel BNC (Coaxial Audio) |
| Ethernet | 1 (10/100 Mbps Ethernet port, RJ-45) |
| Alarm Input | 6 Channels |
| Alarm Output | 6 Channels (5 Channel relay output, 1 Channel 12 V 1 A output) |
| Smart Phone | iOS, Android |
| Browser | Chrome, IE9 or later, Firefox |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Power Consumption | <10 W (without HDD) |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Operating Humidity | ≤95% (RH) |
| Storage Temperature | –20°C to +60°C (–4°F to +140°F) |
| Dimension | 440 mm × 420.2 mm × 76 mm |
| Weight | 4500g |
