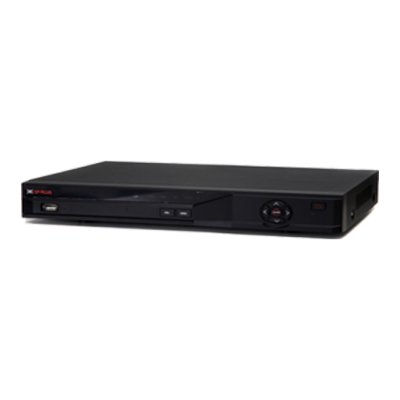

CP-UVR-0808K1-H
- Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
- Support upto 6MP IP Camera
- Max 48Mbps Incoming Bandwidth
- H.265+ / H.265 dual-stream video compression
- HDMI / VGA Simultaneous Video Output
- Support 1 SATA HDD up to 10TB, 2 USB Ports(2.0)
- Mobile Software: iCMOB, gCMOB
- CMS Software:KVMS, KVMS Pro
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 8+4 Ch. : each channel up to 6MP |
| Two-way Talk | Reuse audio in(channel 1)/out, RCA |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
| Video Recording | Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/ D1/CIF (1~25/30fps), Sub steram: D1/CIF(1~15fps) |
| Video Display Split | 1/4/8/9/16 |
| Video Channel | 8 channel, BNC |
| Video Standard | Analog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s) |
| Audio Output | 1 channel |
| Audio Channel | 8 channel |
| Motion Detection | MD Zones: 396 (22 × 18) |
| Video Loss | Supports |
| Alarm Input | 8 channel |
| Alarm Output | 3 channel |
| Smart Phone | iPhone, iPad, Android, Phone |
| Hard Disk | 1 SATA port, up to 10TB |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Max User Account | 128 users |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | RJ-45 port (100M) |
| Interface Ports | 1 HDMI, 1 VGA, 2 USB Ports(2.0), 1 RS485 |
| Protocols | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search, ONVIF 16.12, CGI Conformant |
| Power Supply | DC12V/2A |
| Power Consumption | <10W(without HDD) |
| Working Temp | -10 ~+55°C / 10~90%RH |
| Dimension | 325mm x 255mm x 55mm |
| Weight | 1.2KG (without HDD) |
| Weight | 1.5KG (without HDD) |
