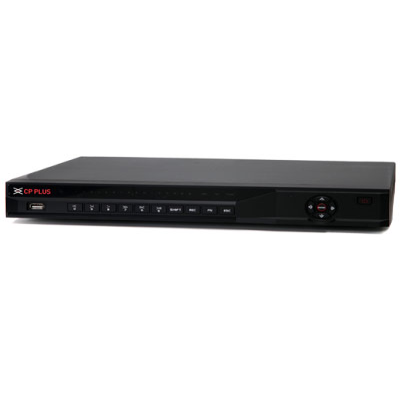

CP-UVR-1601E2-I
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth
- Supports Full-channel AI-Coding
- Instastream/H.265 video compression
- Up to 8 channels video stream (analog channel) SMD Plus
- Support 2 SATA HDD up to 10TB Each, 2 USB Ports
- 1 HDMI / 1 VGA simultaneous video output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16+2/16 channels, each channel up to 6MP |
| Two-way Talk | Reuse audio in/out, RCA |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | 1920×1080, 1280×1024, 1280×720 |
| Video Recording | Main Stream: 1st Ch. 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/CIF (1~25/30fps) Sub steram:CIF(1~7fps) |
| Resolution | 1080N, 720P, 960H, D1, CIF |
| Video Compression | AI Instastream/Instastream/H.265/H.264+/H.264 |
| Video Display Split | 1/4/8/9/16 |
| Video Channel | 16 channels, BNC |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Output | 1 channel, RCA |
| Audio Input | 1 channel, RCA |
| Motion Detection | Support |
| Video Loss | Supports |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 2 SATA port, up to 10TB Each |
| Bit Rate | 32Kbps ~ 4096Kbps Per Channel |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Search Mode | Time/Date, MD & Exact search (accurate to second) |
| Backup Mode | USB Device/Network |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
| Max User Account | 128 users |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | 1 RJ-45 port (100Mbps) |
| Interface Ports | 2 USB Ports (USB 2.0), 1 RS485 Port |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, InstaOn, IP Search, ONVIF 16.12, CGI Conformant |
| Power Supply | DC12V/4A |
| Power Consumption | <10W(without HDD) |
| Working Temp | -10°C ~ +55°C (+14°F ~ +131°F), 10 ~ 90% RH |
| Dimension | 375mm × 289.4mm × 53mm |
| Weight | 1.61kg (without HDD) |
