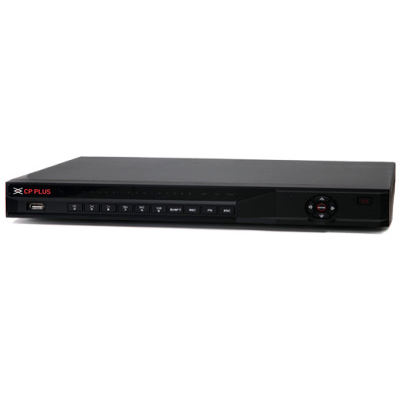

CP-UVR-1601L2-4KI2
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth
- Up to 2 channels video stream (analog channel) Perimeter Protection.
- H.265+/ H.265 dual-stream video compression
- Up to 16 channels video stream (analog channel) SMD Plus.
- Support 2 SATA HDDs up to 10TB each, 2 USB Ports.
- Up to 2 channels video stream (analog channel) Perimeter Protection
- 1 HDMI / 1 VGA simultaneous video output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16+16 channels, each channel up to 6MP |
| Two-way Talk | Reuse audio in/out, RCA |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Recording | Main stream: All channel 4K(1fps–7fps); 6MP(1fps–10fps); 5MP(1fps–12fps); 4K-N, 4MP/3MP (1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps); Sub steram:960H(1fps–15fps); D1/CIF(1fps–25/30fps) |
| Resolution | 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF |
| Video Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Video Display Split | 1/4/8/9/16 |
| Video Channel | 16 channels, BNC |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Output | 1 channel, RCA |
| Audio Input | 1 channel, RCA |
| Motion Detection | MD Zones: 396 (22 × 18) |
| Video Loss | Supports |
| Alarm Output | N/A |
| Alarm Input | N/A |
| Smart Phone | iPhone, iPad, Android Phone |
| Stranger Mode | Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually. |
| Hard Disk | 2 SATA Ports, Up to 10TB capacity Each |
| Database Management | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries® ions and state can be added to each face picture |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Recording Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Backup Mode | USB Device/Network |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
| Max User Account | 128 users |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | 1 RJ-45 port (100Mbps) |
| Interface Ports | 2 USB Ports (1 USB 2.0 , 1 USB 3.0), 1 RS485 |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12, CGI Conformant |
| Power Supply | DC 12V/5A |
| Power Consumption | <15W (without HDD) |
| Working Temp | -10°C to +55°C (+14°F to +131°F), 0–90% RH |
| Dimension | 375 mm × 288 mm × 53 mm |
| Weight | 1.8 kg (without HDD) |
