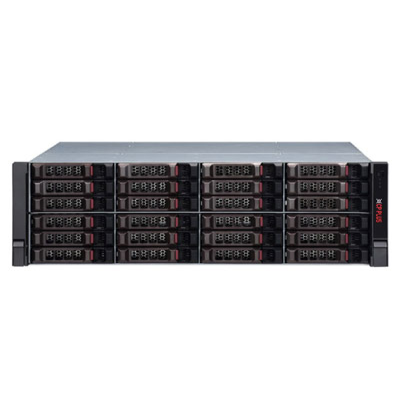

CP-UVS-6247R
- Max 320 IP Camera Inputs
- 24 HDDs, SATA, Hot-Swap
- Max 640 Mbps Incoming/recording Bandwidth
- iSCSI and Mini SAS for Expanded Storage Space
- Redundant Power
- Supports RAID 0/1/3/4/5/6/10/50/60/JBOD, Hotspare
- Modular & Cable less Design
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | 64-bit high-performance Intel processor |
| Operating System | Embedded LINUX |
| Smart Phone | iPhone, iPad, Android |
| User Interface | Web |
| Hard Disk | 24 HDDs, Up to10TB capacity for each HDD, SATA HDD composite connection |
| IP Camera Input | 320 Channel |
| RAID | Single, RAID 0/1/3/4/5/6/10/50/60/JBOD, hotspare |
| HDD Hibernation | Additional HDD bracket, HDD hot-swap, HDD online replacement |
| Memory | 4GB by default |
| Recording Mode | Manual, Schedule (Regular, Continous), Motion Detection, Alarm |
| Search Mode | Time/Date, Channel, Alarm, MD and Exact Search (accurate to second) |
| Extract Frame | Support extracting P frame function. Customizied extracting period and frame rate setup |
| Snapshot | Support snapshot function, create user volume to back data. |
| ANR | After disconnection, system can download the record file from the SD card on the network camera to maintain the full record file. |
| miniSAS | 2 miniSAS ports, for storage extension |
| Expansion Interface | 2 Ten Gigabit Optical Fiber Interface |
| RAID Rebuild | Dynamically adjust RAID rebuild speed to guarantee system load balance |
| Backup Mode | USB Device/Network/eSATA Device |
| Record Interval | 1 ~ 120 min (default 60 min), Pre-record 1 ~ 30 sec, Post-record 10 ~ 300 sec., 1 frame storage by period. |
| User Account | 128 users |
| Interface Ports | 2 USB 3.0, 1 eSATA , 1RS232 |
| Ethernet | 1 management RJ-45 ports (10/100/1000Mbps) , 4 data RJ-45 ports (10/100/1000Mbps) 4 data RJ-45 ports (10/100/1000Mbps) |
| Protocols | HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTP, RTCP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, iSCSI, SMB, NFS, FTP, Alarm Server, IP Search, ONVIF 2.4, CGI Confor |
| Chassis | 1.2mm extra-thickness hot-dip galvanized steel. High accuracy aluminum alloy slider. Self-developed patent removable HDD bracket. |
| Fan | DC12V, 1.5A, Diameter 80mm, MTBF > 100,100 hours, Hot-swap |
| Working Temp | 0°C ~ +40°C (+32°F ~ +104°F), 10 % ~ 80% RH |
| Power Supply | AC100V ~ 240V, 47 ~ 63 Hz，1 + 1 Redundant power, Hot-swap |
| Power Consumption | 200W ~ 400W (With HDD) |
| Dimension | 482.6mm x 494.0mm x 175.0mm |
| Weight | 27kg (without HDD) |
