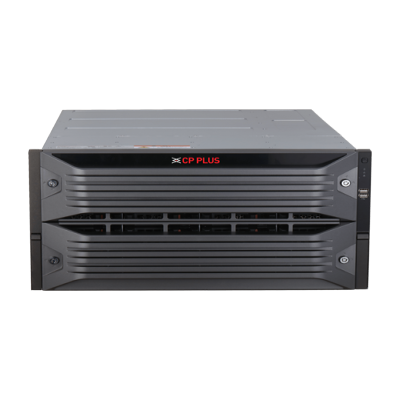

CP-UVS-G48R-V2
- Max 512 IP Camera Inputs
- 48 HDDs, SAS/SATA, Hot-Swap
- Max 1024 Mbps incoming/recording/forwarding bandwidth
- Single controller
- 64-bit High-performance multi-core processor
- Supports RAID 0/1/5/6/10/50/60, JBOD, Hot spare
- Supports video stream/ Picture direct storage mode and IPSAN storage mode
- 1 plus 1 redundant 80PLUS platinum power supply
- Modular and drawer-like design
- Supports N M cluster
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | 64-bit multi-core processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 512 Channel |
| User Interface | Web |
| Fan | Dual ball-bearing fans |
| IPSAN Function | Dynamic online extension of logic volumes |
| Video Direct Storage (Private Protocol) | Up to 512-channel (1024 Mbps) access, storage, and forwarding; 32-channel (64 Mbps) online playback |
| Video Direct Storage (Auto Register) | Up to 512-channel (1024 Mbps) access, storage, and forwarding; 32-channel (64 Mbps) online playback |
| IPSAN Mode | Supported |
| Video Storage | Direct storage |
| RAM | 8 GB by default (extendable to 64 GB) |
| Disk Bay | 48 |
| Network Bandwidth | 1×1GbE management port; 4×1GbE LAN ports |
| Protocols | RTP; RTCP; RTSP; UDP; HTTP; NTP; SNMP; iSCSI; FTP; SMB; NFS |
| N+M Cluster | Supported |
| Hard Disk | 1TB; 2TB; 3TB; 4TB; 5TB; 6TB; 8TB; 10TB; 12TB; 14TB; 16TB; 2.5-inch and 3.5-inch HDD Support simultaneously connecting to SATA/SAS |
| Disk Processing | Dad Sector mapping |
| RAID Instant Use | Supported |
| RAID-write Synchronization | Supported |
| Video Codec | Access by cameras with encoding formats of MPEG4, MJPEG, H.264, H.265, and SVAC Access by multi-sensor cameras, thermal cameras, and panoramic cameras |
| Playback | Web playback, concentrated playback, slice playback, synchronous playback Search video by second Adjustable playback speed |
| Backup Mode | Back up video through USB, network, and eSATA |
| Interface Ports | 1×DB9 ; 1×HDMI |
| Ethernet | 1×1GbE management port; 4×1GbE LAN ports; 4×1-GbE LAN ports; 2×10-GbE optical fiber ports |
| Controller | Single Controller |
| Hot Swapping | Supported |
| PCI-E | 1×PCI-E X8; 1×PCI-E X |
| Smart Phone | iPhone, iPad, Android |
| DISK | 1×2.5 inch SATA |
| Power Supply | 100–127V/200–240 VAC, 50/60 Hz, 8A/4A |
| Power Consumption | <800W (include disks) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F |
| Operating Humidity | 10%–80% (RH) (non-condensation) |
| Storage Temperature | -20°C to +70°C (–4°F to 158°F) |
| Storage Humidity | 5%–90% (RH) (non-condensation) |
| Operating Altitude | ≤5000 m |
| Dimensions | With hanger: 482.6 mm × 261.4 mm × 736.5 mm (19 |
| Weight | 36 Kg |
