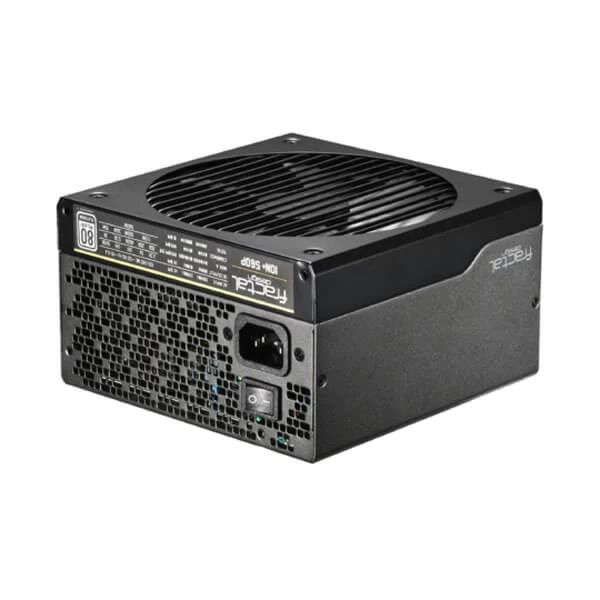

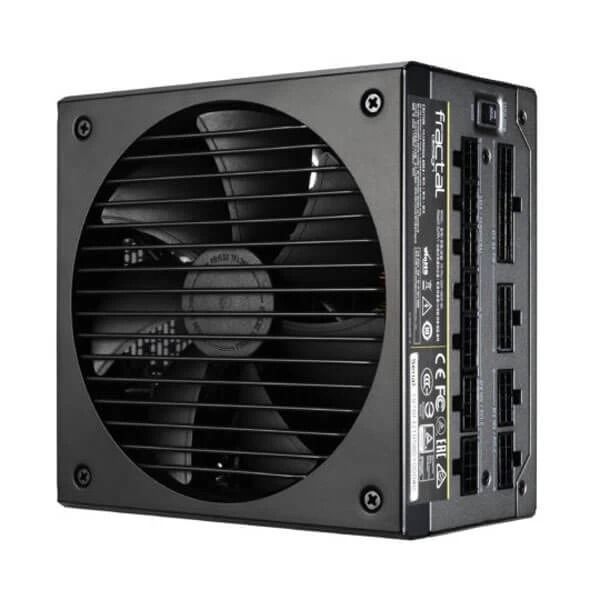

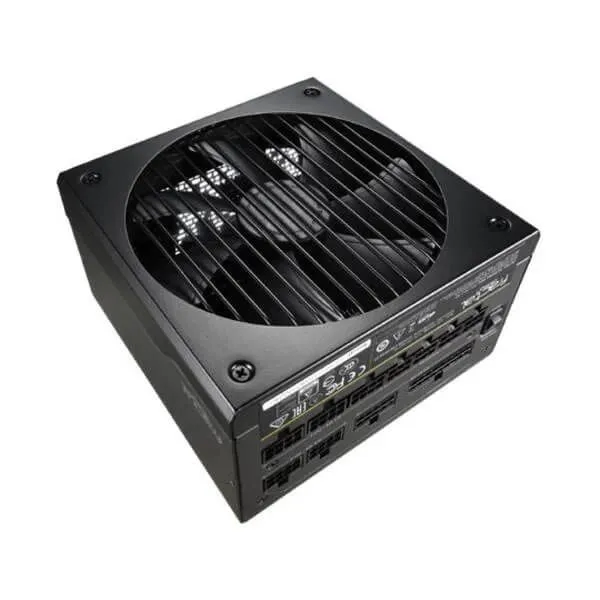

Fractal Design Ion+ 560 Watt 80 Plus Platinum SMPS
Original price was: ₹18,153.00.₹9,499.00Current price is: ₹9,499.00.
(-48%)- 80PLUS Gold Efficiency rating for reduced noise and energy consumption
- Premium Japanese 105°C capacitor(s)on the primary side for superior reliability and durability
- Equipped with a large temperature-controlled Fractal Design Dynamic 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed
- DC-DC design for more precise electrical output and full compatibility with modern components
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Model | FD-PSU-IONP-560P-BK-EU |
| 80 PLUS Certification | Platinum |
| Modular cables | Fully modular |
| Cable type |
|
| Fan type | Customized 140 mm FDB bearing Fractal Design Dynamic Series fan |
| Maximum operating temperature at full load | 50° C |
| Semi-passive operation | Yes, user selectable (Zero RPM) |
| Sleep State Compliance | C6/C7 |
| Protection features | Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection |
| Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Life expectancy (MTBF) at max output load | 100,000 hours |
| Input voltage | 100-240V AC |
| Input frequency | 50-60 Hz |
| Input current | 10A/5A |
| Number of 12V rails | 1 |
| PSU specification compliance | ATX12V 2.4 / EPS12V 2.92 |
| Standby efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
| Unit measurements | 150 x 150 x 86 mm |
| Unit weight (unit only) | 1.61 kg |
| Connectors | |
| ATX 24-pin | 1 |
| PCIe 6+2 pin | 4 |
| Peripheral | 4 |
| ATX12V 4+4 pin / EPS12V 8-pin | 1 |
| SATA | 6 |
| Cable configuration (length between connectors) | |
| ATX 24-pin | 600 |
| ATX12V 4+4 pin | 700 |
| EPS12V 8-pin | N/A |
| PCIe 6+2 pin | 550+120 mm x2 |
| SATA | 400+120+120+120, 650+120 |
| Peripheral | 400+120+120+120 |
| DC output | |
| 3.3 V | 20A |
| 5 V | 20A |
| 3.3 V and 5 V combined | 110W |
| 12 V | 46.6A |
| -12 V | 0.3A |
| 5 V Standby (+5 Vsb) | 3A |
| Total Power | 560W |
| Other | |
| Package dimensions (W x H x D) | 325 x 110 x 210 mm |
| Package content | Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual |
| Package weight | 2.6 kg |
| Warranty | 10 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
