Product details

CPU
* Socket	AMD AM4
* Supported Processors	AMD Ryzen™ 5000 Series, AMD Ryzen™ 3rd Gen, AMD Ryzen™ 3rd Gen with Radeon™ Graphics Processors
Chipset	AMD A520
Memory
* Slots	2 x DDR4 DIMM
* Capacity	Up to 64GB (32GB single DIMM)
* Supported Speeds
* Ryzen™ 5000 series/ 3rd Gen Ryzen™ Processors: DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
* 3rd Gen Ryzen™ with Radeon™ Graphics Processors: DDR4 5300(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
* Memory Type	Supports ECC Un-buffered DIMM, non-ECC Un-buffered DIMM, XMP
Onboard Graphics (3rd Gen Ryzen™ with Radeon™ Graphics Processors only)
* Ports	1 x DisplayPort, 2 x HDMI
* Max Resolution	DisplayPort: 5120×2880@60 Hz, HDMI: 4096×2160@60 Hz
* Displays Supported	Up to 3
Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
Network
* LAN	Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
* Wi-Fi	Intel® Wi-Fi AC 3168 (Wi-Fi 802.11a/b/g/n/ac, 2.4/5 GHz Dual-Band), Bluetooth 4.2
Expansion Slots	1 x PCI Express x16 slot (PCIe 3.0 x16)
Storage Interface
* M.2	1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
* SATA	4 x SATA 6Gb/s connectors (RAID 0, 1, 10)
USB
* Back Panel	4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
* Internal Headers	2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
Internal I/O Connectors	Numerous connectors for power, fans, LEDs, USB, TPM, etc.

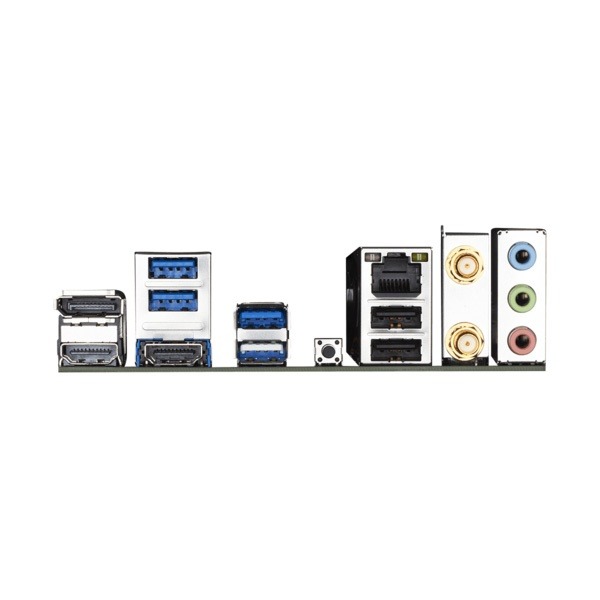

Back Panel Connectors	DisplayPort, 2 x HDMI, 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, Q-Flash Plus button, RJ-45 port, 2 x SMA antenna connectors, 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed detection, overheating warning, fan fail warning, fan speed control
BIOS	128 Mbit flash, AMI UEFI BIOS
Unique Features	Support for APP Center, @BIOS, EasyTune, Fast Boot, Game Boost,
