Product details

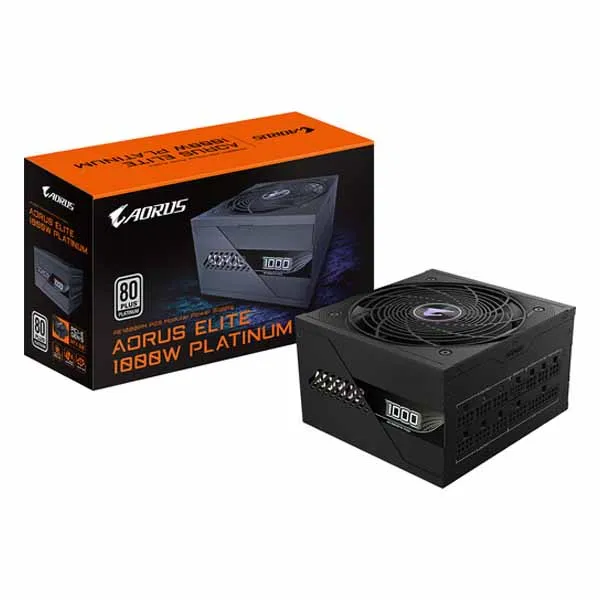

| Brand | GIGABYTE |
|---|---|
| Model | GP-AE1000PM PG5 |
| Color | Black |
|---|---|
| Type | ATX (ATX 3.1 Compatible) |
| Maximum Power | 1000 W |
| Fans | 120mm Fluid Dynamic Bearing (FDB) Fan |
| PFC | Active PFC (>0.9 typical) |
| Max PSU Length | 140 mm |
| Modular | Full Modular |
| Power Good Signal | 100-150ms |
| Hold-up Time | >16ms |
| Efficiency | 92% at typical load |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 60-50 Hz |
| Input Current | 15-6.5A |
| MTBF | >100,000 Hours |
| Connectors | 1 x 12VHPWR (12+4) PCIe / 1 x 24 pin (20+4) ATX / 3 x 4 pin Peripheral / 6 x 8 pin (6+2) PCIe |
| Cable Spec | ATX/MB 20+4 Pin x 1 : 650mm*1 CPU/EPS 4+4 Pin x 2 : 700mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1 |
There are no reviews yet.
