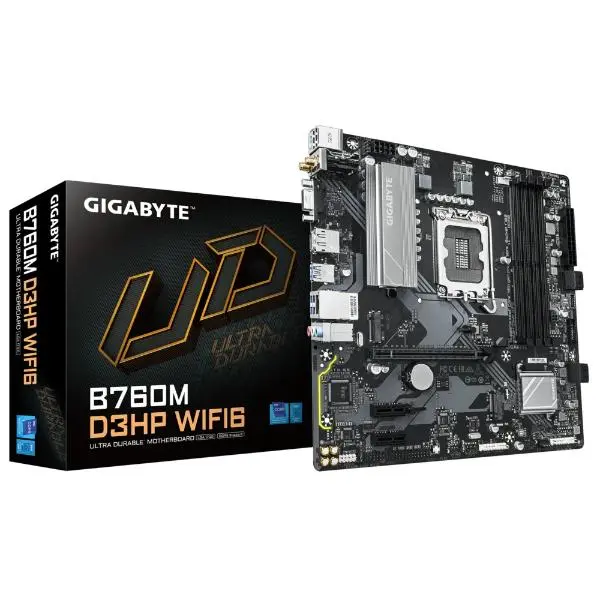

Gigabyte B760M D3HP WIFI6 Motherboard
Original price was: ₹25,500.00.₹13,149.00Current price is: ₹13,149.00.
(-48%)- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Category | Details |
|---|---|
| CPU Support | LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory Support | – DDR5 5600/5200/4800/4400 MT/s (14th/13th Gen i9/i7) – DDR5 4800/4400 MT/s (13th Gen i5/i3, 12th Gen CPUs) – 4x DDR5 DIMM (up to 192 GB) |
| – Dual channel, ECC/Non-ECC Un-buffered DIMM support – XMP profiles supported | |
| Graphics | Integrated Intel® HD Graphics: – 1 x D-Sub (1920×1200@60Hz) – 1 x HDMI 2.1 (4096×2160@60Hz) – 1 x DisplayPort 1.2 (4096×2304@60Hz) |
| * Triple display support; output depends on CPU | |
| Audio | Realtek® Audio CODEC 2/4/5.1/7.1-Channel HD Audio S/PDIF Out support |
| Networking | – LAN: Realtek® GbE LAN (10/100/1000 Mbps) – Wi-Fi: Realtek® Wi-Fi 6 (RTL8851BE), Dual Band 2.4/5GHz – Bluetooth: 5.3 |
| Expansion Slots | – 1 x PCIe x16 (CPU, Gen 4.0) – 2 x PCIe x1 (Chipset, Gen 3.0) |
| Storage Interfaces | – 2 x M.2 PCIe 4.0 x4/x2 (2280) – 4 x SATA 6Gb/s RAID 0/1/5/10 support |
| USB Ports | – Internal: 1 x USB-C (3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers – Rear: 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal I/O | – 1 x 24-pin ATX, 1 x 8-pin 12V – 1 x CPU fan, 3 x system fans – Addressable & RGB LED headers |
| – TPM, COM, LPT, S/PDIF, Reset, Clear CMOS, Q-Flash Plus | |
| Rear I/O Panel | – 2 x USB 2.0 – 3 x USB 3.2 Gen 1 – 1 x HDMI – 1 x DisplayPort – 1 x D-Sub – 1 x RJ-45 – 3 x Audio jacks – 2 x Wi-Fi Antennas – 1 x PS/2 |
| Monitoring | Voltage, temperature, fan speed, water flow, fan fail warning, fan speed control |
| BIOS | AMI UEFI BIOS, 128Mbit flash Q-Flash & Q-Flash Plus |
| Software | Norton® Internet Security (OEM), LAN management software, GIGABYTE Control Center (GCC) |
| OS Support | Windows 11/10 64-bit |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
