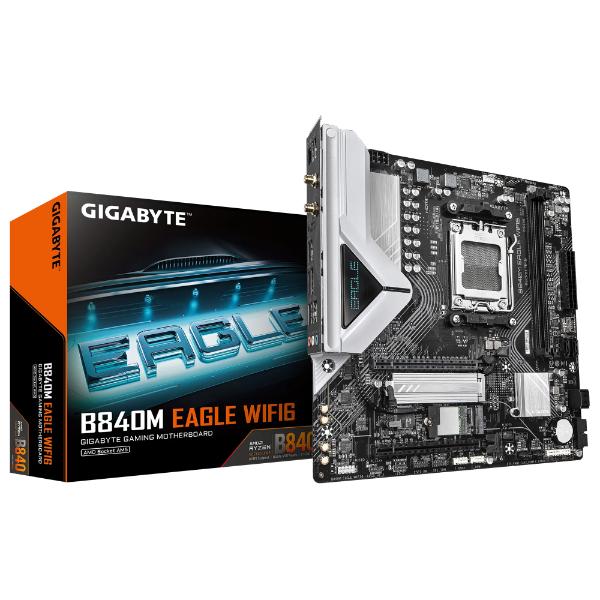

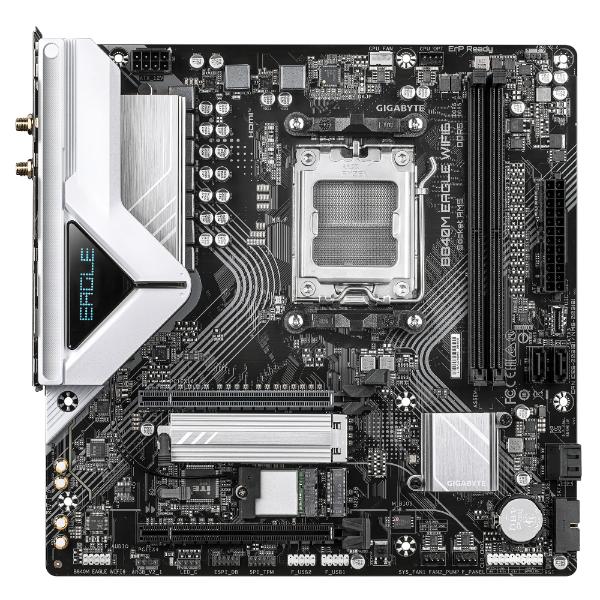

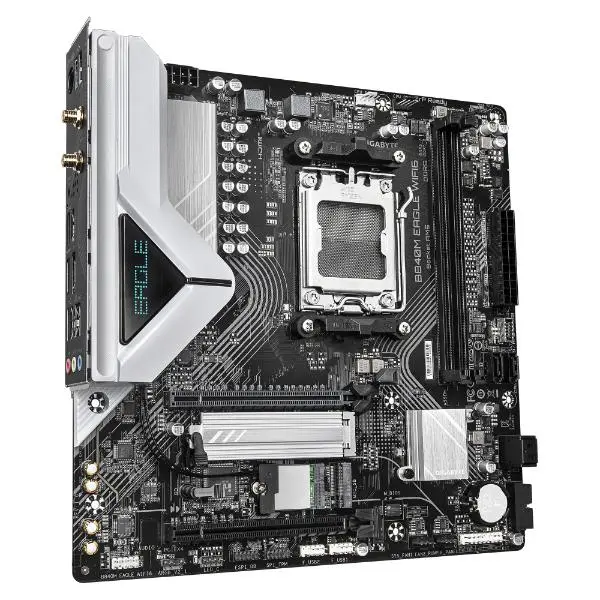

Gigabyte B840M Eagle WiFi 6 M-ATX AMD AM5 Motherboard
Original price was: ₹34,999.00.₹10,449.00Current price is: ₹10,449.00.
(-70%)- Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors with Socket AM5.
- 2 x DDR5 DIMM sockets supporting up to 128GB with speeds up to 7200 MHz
- Support for AMD EXPO™
- Includes Realtek® Wi-Fi 6 and Bluetooth 5.3 support
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Category | Details |
|---|---|
| CPU | AMD Socket AM5, support for:
(Go to GIGABYTE’s website for the latest CPU support list.) |
| Chipset | AMD B840 |
| Memory | Support for 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:
(Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 6 RTL8851BE
(Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
| USB | CPU:
CPU+USB 2.0 Hub:
Chipset:
|
| Internal I/O Connectors |
|
| Back Panel Connectors |
(Note) Actual support may vary by CPU. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
|
| Unique Features |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Bundled Software |
|
| Operating System |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
