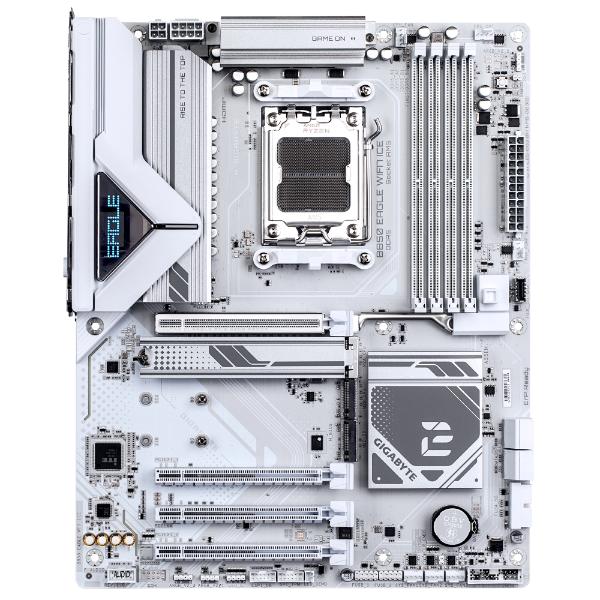

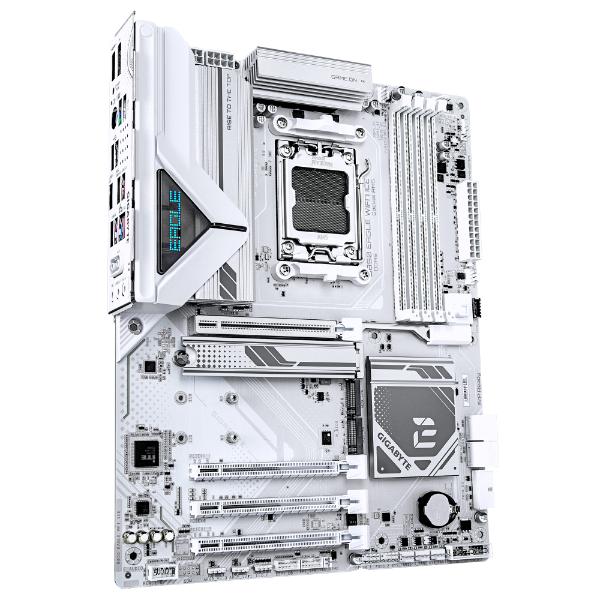

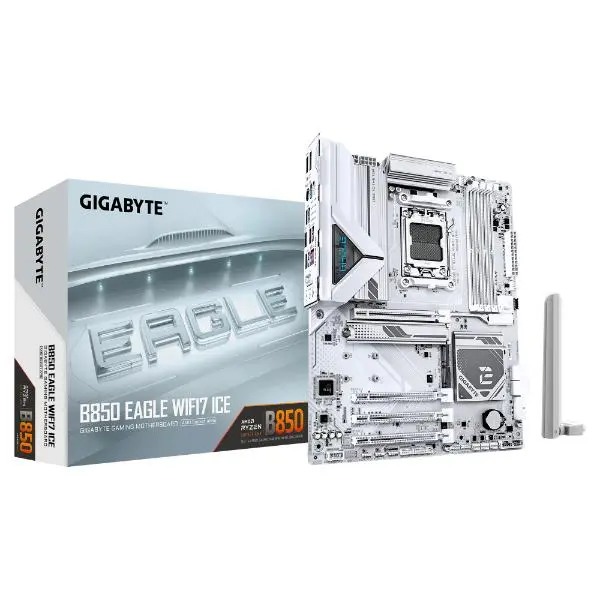

Gigabyte B850 EAGLE WIFI7 ICE Motherboard

• AMD Socket AM5, support for: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• (Go to GIGABYTE’s website for the latest CPU support list.)

• Support for DDR5 8200(O.C) down to 4400 MT/s memory modules.
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity).
• Dual channel memory architecture.
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
• Support for AMD EXPO™ & Extreme Memory Profile (XMP) memory modules.

• 1 x DisplayPort, max resolution 3840×2160@144 Hz (DP 1.4, HDR).
• 1 x HDMI port, max resolution 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR).

(Graphics specifications may vary depending on CPU support.)

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz bands
• BLUETOOTH 5.4
• Support for 11be 160MHz wireless standard
• * Wi-Fi 7 requires Windows 11 SV3. No support for Windows 10.

• 1 x PCI Express x16 slot (PCIEX16)
  • Ryzen™ 9000/7000 Series: PCIe 5.0 x16 mode
  • Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8 mode
  • Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4 mode

Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 at x4 (PCIEX4)
• 2 x PCI Express x16 slots, supporting PCIe 3.0 at x1 (PCIEX1_1, PCIEX1_2)
• * PCIEX1_1/2 slots share bandwidth with SATA3 0/1 connectors.

• 1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000) or PCIe 4.0 x4/x2 (Ryzen 8000)
• 1 x M.2 (M2B_CPU): PCIe 4.0 x4/x2

Chipset:

• 1 x M.2 (M2C_SB): PCIe 4.0 x2

SATA & RAID:

• 4 x SATA 6Gb/s connectors
• RAID 0, 1, 5, 10 support for NVMe SSDs (RAID 5 requires Ryzen 9000)
• RAID 0, 1, 10 support for SATA devices

• 1 x USB Type-C® (back panel), USB 3.2 Gen 1
• 2 x USB 3.2 Gen 2 Type-A (red, back panel)

Chipset:

• 1 x USB Type-C® (internal header), USB 3.2 Gen 1
• 4 x USB 3.2 Gen 1 (2 back, 2 internal)
• 4 x USB 2.0/1.1 (back panel)

Chipset+USB 2.0 Hub:

• 4 x USB 2.0/1.1 (internal headers)

• 1 x 24-pin ATX main power
• 1 x 8-pin & 1 x 4-pin ATX 12V power
• 1 x CPU fan, 1 x CPU fan/water pump, 3 x system fan, 1 x system fan/water pump headers
• 3 x addressable RGB Gen2 LED, 1 x RGB LED strip headers
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• Front Panel, Front Audio headers
• 1 x USB Type-C® header (USB 3.2 Gen 1)
• 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers
• 1 x TPM header
• 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper

• 1 x DisplayPort, 1 x HDMI port
• 1 x Q-Flash Plus button
• 4 x USB 2.0/1.1, 1 x PS/2 port
• 2 x USB 3.2 Gen 2 Type-A (red)
• 1 x USB Type-C® (USB 3.2 Gen 1)
• 1 x RJ-45 LAN port
• 2 x USB 3.2 Gen 1 ports
• 2 x antenna connectors (2T2R)
• 3 x audio jacks
