Product details
| Feature | Specification |
| CPU | |
| Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000 Series Processors, AMD Ryzen™ 8000 Series Processors, AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | |
| Supported Memory | DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200/4800 MT/s |
| DIMM Sockets | 4 x DDR5 DIMM sockets |
| Maximum System Memory | Up to 256 GB (64 GB single DIMM capacity) |
| Memory Architecture | Dual channel |
| Supported Memory Modules | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, AMD EXtended Profiles for Overclocking (AMD EXPO™), Extreme Memory Profile (XMP) |
| Onboard Graphics | |
| Integrated Graphics | AMD Radeon™ Graphics |
| DisplayPort | 1 x, supporting 3840×2160@144 Hz (DisplayPort 1.4, HDR) |
| Front HDMI Port | 1 x, supporting 1920×1080@30 Hz (HDMI 1.4) |
| Audio | |
| Codec | Realtek® ALC1220 CODEC |
| Channels | 2/4/5.1/7.1-channel |
| S/PDIF Out | Yes |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | |
| Model | Realtek® Wi-Fi 7 RTL8922AE |
| Wi-Fi Standard | 802.11a, b, g, n, ac, ax, be (2.4/5/6 GHz) |
| Bluetooth | BLUETOOTH 5.4 |
| Expansion Slots | |
| PCIEX16 (CPU) | 1 x PCI Express x16 (varies by CPU: PCIe 5.0 x16, PCIe 4.0 x8, or PCIe 4.0 x4) |
| PCIEX4 (Chipset) | 1 x PCI Express x16 (PCIe 3.0, running at x4) |
| Storage Interface | |
| M.2 Connector (M2A_CPU) | 1 x, integrated in the CPU (PCIe 5.0 x4/x2 or PCIe 4.0 x4/x2) |
| M.2 Connector (M2B_CPU) | 1 x, integrated in the CPU (PCIe 4.0 x4/x2 or PCIe 4.0 x2) |
| SATA 6Gb/s connectors | 4 x |
| RAID Support | RAID 0, 1, 5, 10 for NVMe; RAID 0, 1, 10 for SATA |
| USB | |
| Back Panel Ports | 1 x USB Type-C® (USB 3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0/1.1 |
| Internal Headers | 1 x USB Type-C® (USB 3.2 Gen 2×2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Other Ports | 4 x USB 3.2 Gen 1 ports on the back panel |
| Internal I/O Connectors | |
| Power | 1 x 24-pin ATX, 1 x 8-pin ATX 12V |
| Fan Headers | 1 x CPU fan, 1 x CPU fan/water cooling pump, 3 x system fan, 1 x system fan/water cooling pump |
| RGB Headers | 3 x addressable RGB Gen2 LED strip, 1 x RGB LED strip |
| Other Headers | 2 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB Type-C®, 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x Trusted Platform Module, 1 x HDMI port, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper |

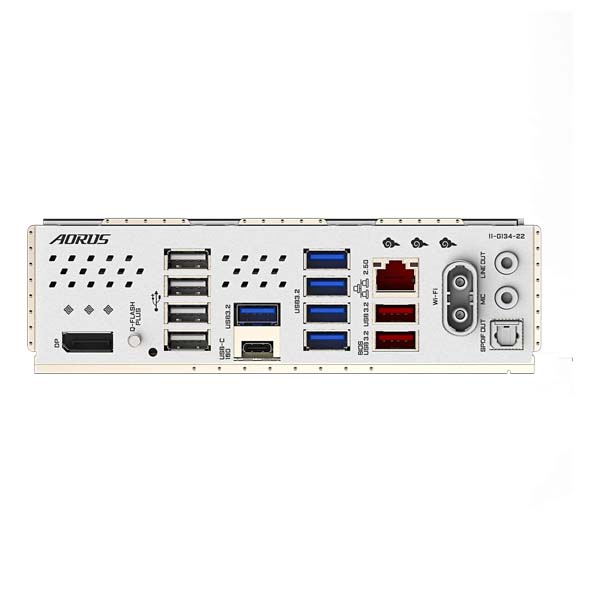

| Back Panel Connectors | |
| Ports | 1 x DisplayPort, 1 x Q-Flash Plus button, 4 x USB 2.0/1.1, 5 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C®, 1 x RJ-45, 2 x antenna, 2 x audio jacks, 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| Note | Features, price, and specifications are subject to change without notice. Images are for representation only. |
