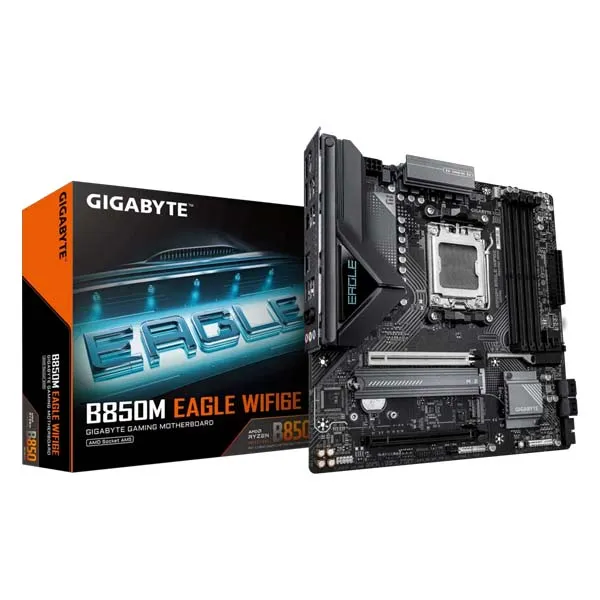

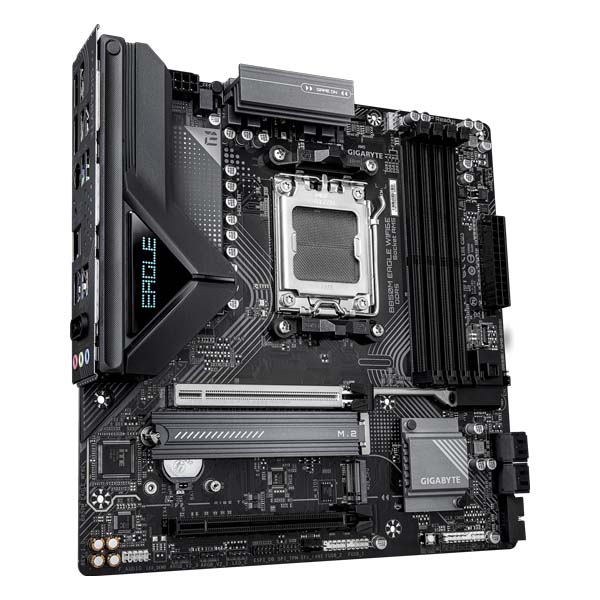

Gigabyte B850M EAGLE WIFI6E M-ATX Motherboard
Original price was: ₹24,000.00.₹14,699.00Current price is: ₹14,699.00.
(-39%)- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 8+2+2 phases VRM solution
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Feature | Specification |
| CPU | |
| Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000 Series Processors, AMD Ryzen™ 8000 Series Processors, AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | |
| Supported Memory | DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s |
| DIMM Sockets | 4 x DDR5 DIMM sockets |
| Maximum System Memory | Up to 256 GB (64 GB single DIMM capacity) |
| Memory Architecture | Dual channel |
| Supported Memory Modules | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, AMD EXtended Profiles for Overclocking (AMD EXPO™), Extreme Memory Profile (XMP) |
| Onboard Graphics | |
| Integrated Graphics | AMD Radeon™ Graphics |
| HDMI Port | 1 x, supporting 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR) |
| DisplayPorts | 2 x, supporting 3840×2160@144 Hz (DisplayPort 1.4) |
| Display Support | Up to triple-display at the same time |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | |
| Model | Realtek® Wi-Fi 6E RTL8852CE |
| Wi-Fi Standard | WIFI a, b, g, n, ac, ax (2.4/5/6 GHz) |
| Bluetooth | BLUETOOTH 5.3 |
| Expansion Slots | |
| PCI Express x16 (CPU) | 1 x (PCIe 5.0 x16, PCIe 4.0 x8, or PCIe 4.0 x4) |
| PCI Express x16 (Chipset) | 1 x (PCIe 3.0 x4) |
| Storage Interface | |
| M.2 connector (M2A_CPU) | 1 x (PCIe 5.0 x4/x2 or PCIe 4.0 x4/x2) |
| M.2 connector (M2B_CPU) | 1 x (PCIe 4.0 x4/x2 or PCIe 4.0 x2) |
| SATA 6Gb/s connectors | 4 x |
| RAID Support | RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe; RAID 0, RAID 1, and RAID 10 for SATA |
| USB | |
| CPU | 1 x USB Type-C® (USB 3.2 Gen 2), 1 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0/1.1 |
| Chipset | 1 x USB Type-C® (USB 3.2 Gen 2), 4 x USB 3.2 Gen 1 (2 on back, 2 internal), 4 x USB 2.0/1.1 (internal) |
| Internal I/O Connectors | |
| Power | 1 x 24-pin ATX, 1 x 8-pin ATX 12V |
| Fan/Pump Headers | 1 x CPU fan, 1 x CPU fan/water cooling pump, 1 x system fan, 1 x system fan/water cooling pump |
| RGB Headers | 3 x addressable RGB Gen2 LED strip, 1 x RGB LED strip |
| Storage Headers | 4 x SATA 6Gb/s, 2 x M.2 Socket 3 |
| Other Headers | 1 x front panel, 1 x front panel audio, 1 x USB Type-C®, 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x Trusted Platform Module, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper |
| Back Panel Connectors | |
| Ports/Buttons | 1 x HDMI, 2 x DisplayPorts, 1 x Q-Flash Plus button, 1 x PS/2, 1 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C®, 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 1 x RJ-45, 2 x antenna, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| Note | Features, price, and specifications are subject to change without notice. Images are for representation only. |
