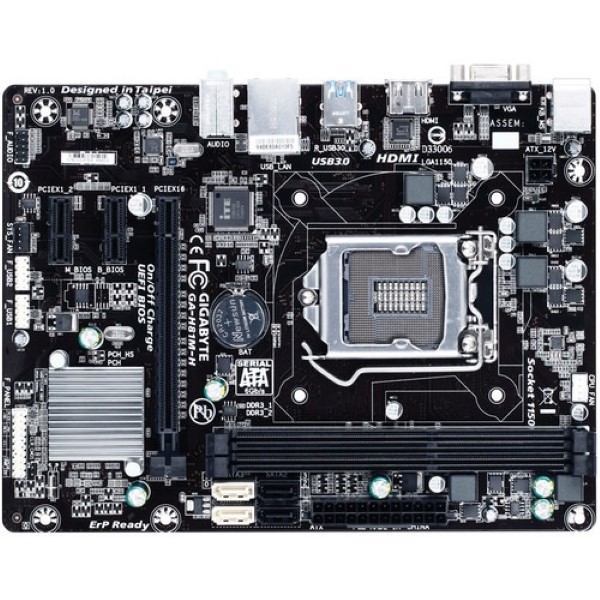

Gigabyte GA-H81M-H Micro ATX Motherboard
Original price was: ₹8,000.00.₹6,349.00Current price is: ₹6,349.00.
(-21%)- Supports 4th Generation Intel® Core™ processors
- GIGABYTE Ultra Durable™ Technology
- GIGABYTE UEFI BIOS
- USB 3.0 ports with GIGABYTE 3x USB power
- GIGABYTE On/Off Charge™ for USB devices
- LAN with high ESD Protection
- HDMI, D-SUB port on rear panel
- Warranty: 3 Years
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
Gigabyte GA-H81M-H Specs
| Form Factor | Micro-ATX |
| CPU Support | Intel Core i7 / i5 / i3 / Pentium / Celeron processors |
| Chipset | Intel H81 |
| Socket Type | 1150 |
| Main Memory | RAM Slots: 2 Type: 1333 / 1600 MHz DDR3 Max Size: 16 GB Dual channel memory architecture Supports non-ECC memory Supports Extreme Memory Profile (XMP) |
| Graphics Processor (GPU) | Intel HD 4600 with up to 1 GB shared video memory Resolutions up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz via HDMI Resolutions up to 1920 x 1200 via VGA |
| I/O Control | iTE I/O Controller Chip |
| BIOS | 1 x 32 Mbit flash AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Monitoring and Management Support | System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control |
| Slots | 1 x PCIe x16 slot 2 x PCIe x1 slots |
| Onboard SATA | 2 x SATA 6 Gb/s connectors (SATA III 0 / 1) 2 x SATA 3 Gb/s connectors (SATA III 2 / 3) |
| Audio | Chipset integrated by Realtek ALC887 2 / 4 / 5.1 / 7.1 Channel |
| LAN | Realtek GbE LAN controller Supports 10 Mb/s, 100 Mb/s, & 1000 Mb/s |
| Internal I/O Connectors | 1 x 24-pin ATX main power 1 x 4-pin ATX 12V power 2 x SATA 6 Gb/s connectors 2 x SATA 3 Gb/s connectors 2 x USB 2.0 / 1.1 headers 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x Clear CMOS jumper |

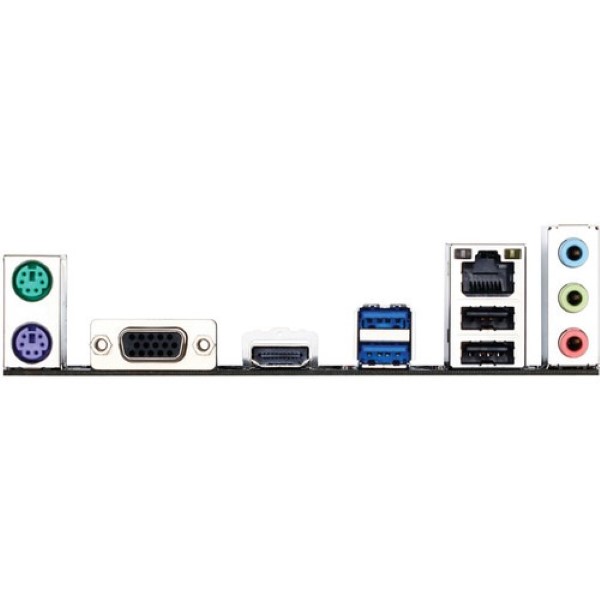

| Back Panel I/O Ports | 1 x PS/2 keyboard 1 x PS/2 mouse 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x RJ-45 LAN 3 x Audio jacks (Line In, Line Out, Mic In) 1 x VGA 1 x HDMI 1.4a |
| Bundle Software | Norton Internet Security (OEM version) |
| Supports | Q-Flash Xpress Install |
| Compatible Operating Systems | Windows 8 / 7 |
| Dimensions | 8.9 x 6.8″ / 22.6 x 17 cm |
Packaging Info
| Package Weight | 1.45 lb |
| Box Dimensions (LxWxH) | 10.6 x 9.6 x 2.2″ |
