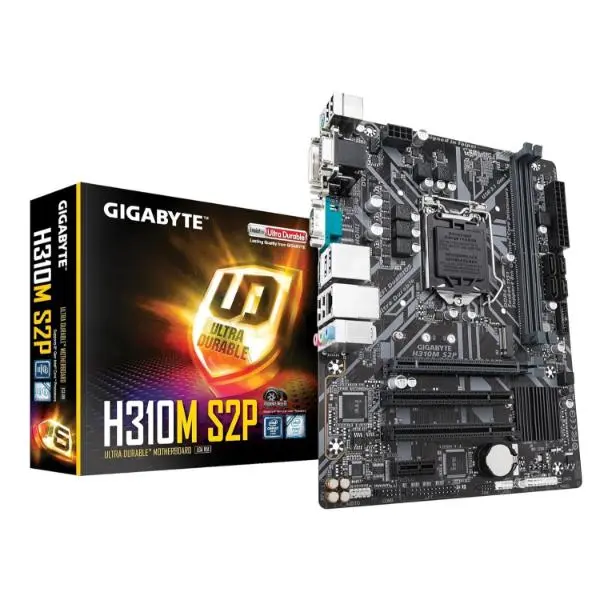

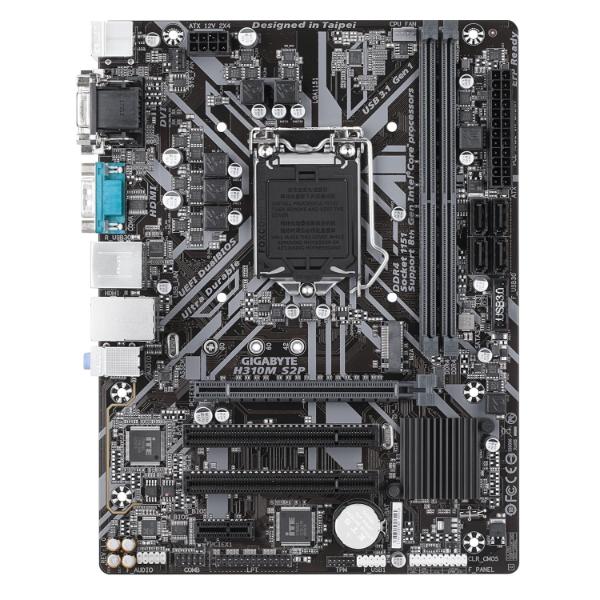

Gigabyte H310M S2P 2.0 (rev. 1.0) Intel LGA 1151 DDR4 Motherboard

0 Reviews
In stock

Original price was: ₹8,100.00.Current price is: ₹6,555.00.

(-19%)
  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI 1.4, DVI-D, D-Sub Ports for Multiple Display
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • All new GIGABYTE™ APP Center, simple and easy use
  • Anti-Sulfur Resistors Design
  • GIGABYTE UEFI DualBIOS™
  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block

Product details

Specifications

CPU
  1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE’s website for the latest CPU support
  2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)
Chipset Intel® H310 Express Chipset
Memory
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 2666/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB Maximum support of 2 independent display at one time.
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
  3. 2 x PCI slots
Storage Interface Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
  2. 4 x SATA 6Gb/s connectors * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
USB
Chipset:

  1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 1 x M.2 Socket 3 connector
  5. 1 x CPU fan header
  6. 1 x system fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.1 Gen 1 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  12. 1 x serial port header
  13. 1 x parallel port header
  14. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 1 x serial port
  6. 2 x USB 3.1 Gen 1 ports
  7. 4 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen BIOS Setup Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 18.5cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
