Product details
| Model | GIGABYTE H610M H Motherboard |
| CPU Socket | LGA 1700 |
| CPU Support | Intel 13th Gen, 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel H610 |
| Memory | 2 x DIMM, Max. 64GB, Supports DDR4 3200 ECC and non-ECC, un-buffered memory Dual Channel Memory Architecture Supports Extreme Memory Profile (XMP) |
| On-Board Graphics support | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI 2.1 port, supporting a maximum resolution of 4096×2106@60 Hz |
| Expansion Slot | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slots |
| Ethernet | 1 x Intel GbE Ethernet |
| Storage | 1 x M.2 connector 4 x SATA 6Gb/s connectors |
| Audio | Realtek Audio CODEC High-Definition Audio 2/4/5.1/7.1-channel |
| USB Ports | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |

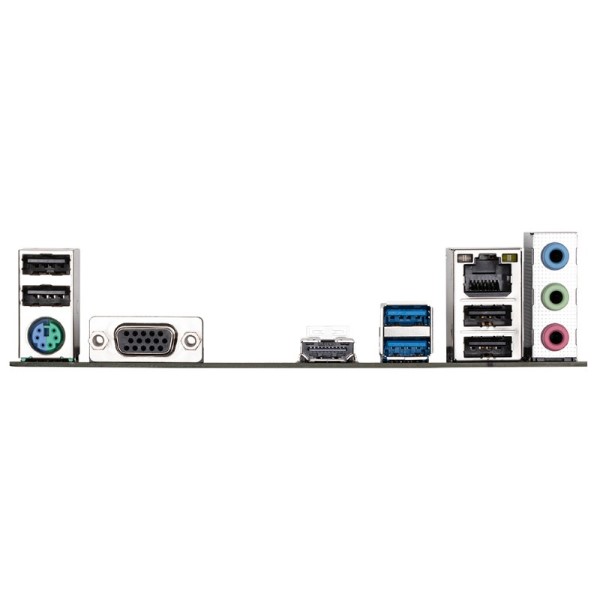

| Back Panel I/O Ports | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI 2.0 port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip headers 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header 1 x serial port header 1 x Clear CMOS jumper |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 23 cm x 21.5 cm Micro-ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
