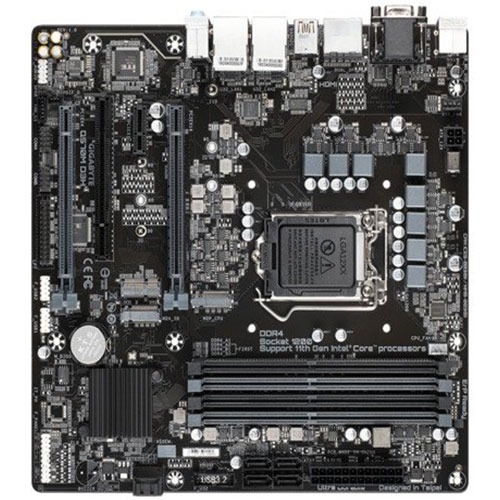

Product details
| Model | |
|---|---|
| Brand | GIGABYTE |
| Model | Q570M D3H |
| Supported CPU | |
| CPU Socket Type | LGA1200 |
| CPU Type | 11th and 10th Gen Intel Core Processors |
| Chipsets | |
| Chipset | Intel® Q570 Express |
| Memory | |
| Number of Memory Slots | 4 x DDR4 |
| Memory Standard | DDR4 2933/2666/2400/2133 MHz memory modules |
| Maximum Memory Supported | 128 GB |
| Channel Supported | Dual Channel DDR4 Memory Technology |
| Expansion Slots | |
| PCI Express x1 | 1 x PCI Express x1 slot |
| PCI Express x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16); 1 x PCI Express x16 slot, running at x4 (PCIEX4); 1 x PCI Express x16 slot, running at x1 (PCIEX1) |
| Storage Devices | |
| SATA 3Gb/s | 6 x SATA 6Gb/s connectors |
| SATA RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
| Onboard Video | |
| Onboard Video Chipset | Integrated Graphics Processor-Intel® HD Graphics |
| Onboard Audio | |
| Audio Channels | 2/4/5.1/7.1-channel |
| Audio Chipset | Realtek audio codec |
| Onboard LAN | |
| LAN Chipset | 2 x Intel GbE LAN chips |

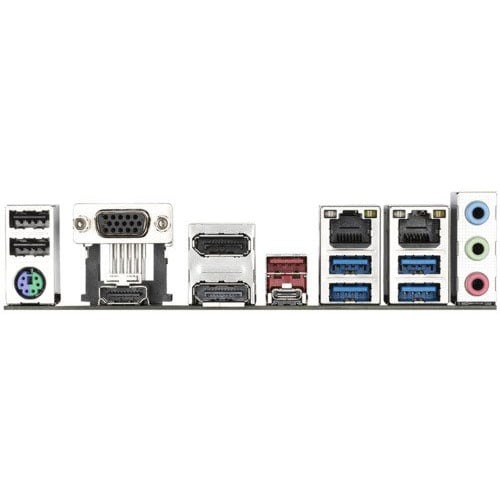

| Rear Panel Ports | |
| USB | 1,x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports |
| Audio Ports | 3 x audio jacks |
| PS/2 | 1 x PS/2 Keyboard/Mouse combo port |
| Video Ports | HDMI/Display port/D-sub |
| Onboard USB | |
| Onboard USB | N/A |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | Micro ATX Form Factor |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector |
| Dimensions | 24.4cm x 24.4cm |
