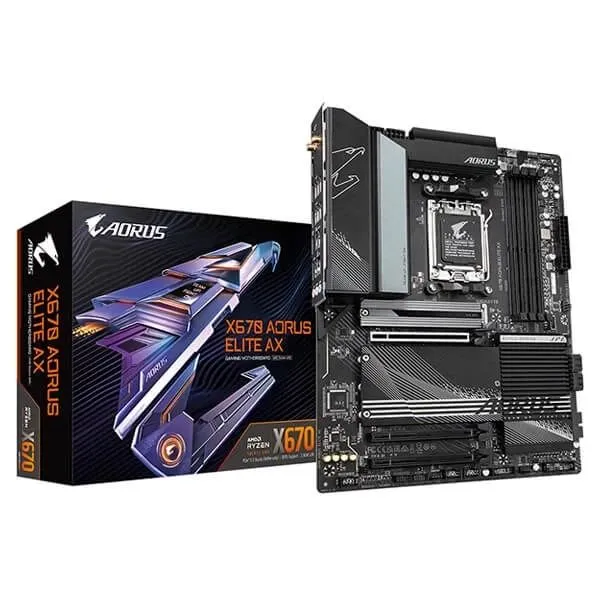

Gigabyte X670 Aorus Elite AX (Wi-Fi) Motherboard

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
• Support for HDMI 2.1 version and HDCP 2.3.
• Support native HDMI 2.1 TMDS compatible ports.

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• AMD Wi-Fi 6E RZ616 (MT7922A22M)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.2
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
• For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
• Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

• 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU) (Note) Actual support may vary by CPU.
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

• 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 2 x USB 3.2 Gen 1 ports on the back panel

CPU + USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports on the back panel

Chipset:

• 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
• 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• 4 x USB 2.0/1.1 ports available through the internal USB headers

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 4 x SATA 6Gb/s connectors
• 4 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x THB_U4 add-in card connector
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x power button
• 1 x reset button
• 1 x Clear CMOS button
• 1 x reset jumper
• 1 x Clear CMOS jumper

• 1 x Q-Flash Plus button
• 2 x SMA antenna connectors (2T2R)

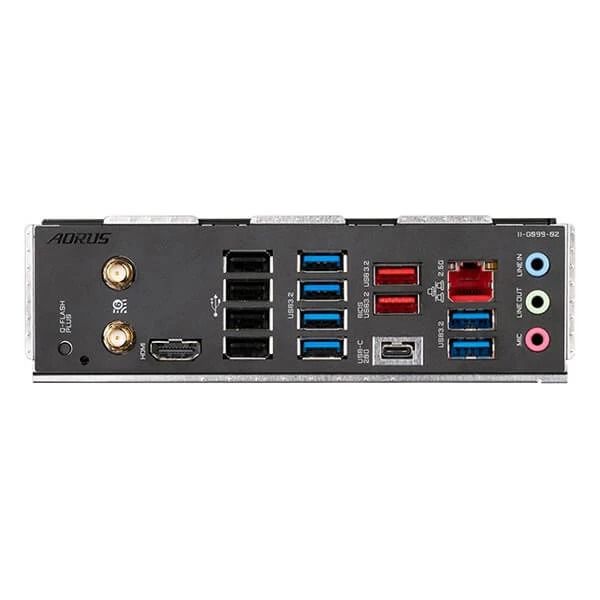

• 1 x HDMI port
• 6 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
• 1 x RJ-45 port
• 3 x audio jacks

• iTE® I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• Whether the fan speed control function is supported will depend on the fan you install.

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for GIGABYTE Control Center (GCC)
• Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
