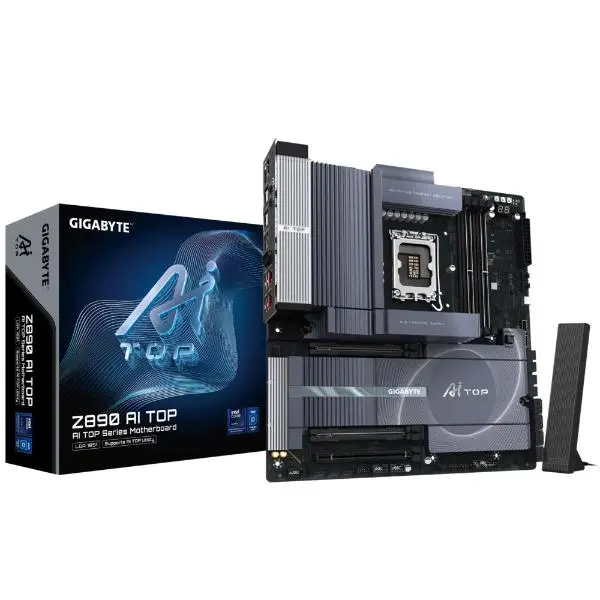

Gigabyte Z890 AI TOP LGA1851 E-ATX Motherboard
Original price was: ₹79,499.00.₹59,345.00Current price is: ₹59,345.00.
(-25%)- Supports Intel Core Ultra Processors (Series 2)
- DDR5 Compatible: 4*DIMMs with XMP Memory Module Support
- Power Design: 22+1+2, 110A Smart Power Stage
- Thermals: VRM Thermal Armor Advanced, M.2 Thermal Guard, DDR Wind Blade XTREME, UD Nanocarbon Backplate
- Connectivity: PCIe 5.0, 4x M.2 Slots, Dual Thunderbolt 5, Front USB-C, Front Thunderbolt 4
- DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, WIFI EZ-Plug, EZ-Debug Zone
- Networking: WIFI7, 10GbE LAN
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| CPU | LGA1851 socket, supports Intel® Core™ Ultra Processors; L3 cache varies with CPU. Refer to “CPU Support List” for details. |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Supports DDR5 up to 9500(O.C) MT/s; 4 x DDR5 DIMM sockets with max capacity of 256GB (64GB per DIMM); dual-channel architecture; supports ECC and non-ECC un-buffered memory; XMP support. |
| Onboard Graphics | Integrated Intel® HD Graphics and Thunderbolt™ 5 Controller; 2 x Thunderbolt™ 5 (USB4® Type-C®) ports, max resolution 7680×4320@60Hz; 1 x Thunderbolt™ 4 (USB4® Type-C®) port, max resolution 5120×2880@60Hz; 1 x HDMI port, max resolution 4096×2160@60Hz. |
| Audio | ESS ES9260 CODEC (rear), Realtek® ALC897 CODEC (front), High Definition Audio, 2-channel. |
| LAN | Dual Marvell® AQtion AQC113C 10GbE LAN chips (supports 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps). |
| Wireless Communication | Intel® Wi-Fi 7 BE200, supports 802.11a/b/g/n/ac/ax/be; Bluetooth 5.4; supports 2.4/5/6 GHz bands and 11be 320MHz standard (requires Windows 11 SV3). |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 5.0 x8 (CPU, shares with x16 slot); 1 x PCIe 4.0 x4 (Chipset); compatible with graphics or NVMe SSD in certain slots. |
| Storage Interface | CPU: 1 x M.2 PCIe 5.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2; Chipset: 2 x M.2 PCIe 4.0 x4/x2; 8 x SATA 6Gb/s (4 via Chipset + ASMedia® ASM1164); RAID support for NVMe and SATA devices. |
| USB Ports | Thunderbolt™ 5 Controller: 2 x Thunderbolt™ 5 (USB Type-C®) on back; Chipset: 1 x USB4® Type-C®, 1 x USB 3.2 Gen 2×2 Type-C®, 2 x USB 3.2 Gen 2 Type-A (red), 2 x USB 3.2 Gen 1, additional internal USB headers for USB 3.2 Gen 1, Gen 2, and USB 2.0. |
| Internal I/O Connectors | 24-pin ATX, 2 x 8-pin ATX 12V, CPU and system fan headers, RGB and addressable LED headers, USB 3.2 and USB 2.0 headers, power/reset buttons, TPM header, noise detection header, M.2 slots, SATA connectors, Thunderbolt™ 4 (USB4® Type-C®) port. |
| Back Panel Connectors | 1 x DisplayPort In, 1 x HDMI, 2 x audio jacks, 2 x Thunderbolt™ 5 (USB Type-C®), 2 x USB 3.2 Gen 1, 6 x USB 3.2 Gen 2 Type-A (red), 2 x antenna connectors, 2 x RJ-45. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control, noise detection. |
| BIOS | AMI UEFI BIOS, 256 Mbit flash, supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) support, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Windows 11 64-bit supported |
| Form Factor | E-ATX, 30.5 cm x 28.5 cm |
