Product details
| Chipset | AMD B650 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket | AM5 |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB |
| DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC) MT/s |
| Dual-Channel mode, Supports non-ECC, unbuffered memory, AMD EXPO™ |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz) |
| 1x DisplayPort 1.4 (4K 60Hz)* |
| Slots | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 3.0 (up to x1) |
| PCI_E2 Gen PCIe 4.0 (up to x16) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (PCIe 4.0 x4, 2280 devices) |
| 4x SATA 6G |
| Supports RAID 0, RAID 1, RAID 10 |

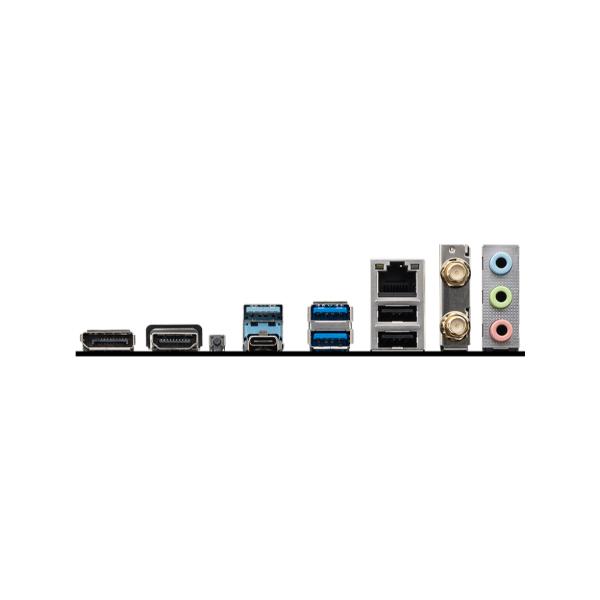

| USB Ports | Rear: 2x USB 2.0, 3x USB 5Gbps Type A, 1x USB 5Gbps Type C |
| Front: 4x USB 2.0, 4x USB 5Gbps Type A |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Internal I/O | 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 3x System Fan, 2x Front Panel |
| 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector (JRGB), 4x USB 2.0 |
| Wireless LAN & Bluetooth | Wi-Fi 6E, MU-MIMO, Bluetooth® 5.3 |
| Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz/5GHz/6GHz bands |
| LED Features | 4x EZ Debug LED |
| Note | Wi-Fi 6GHz band relies on Windows 11 support and regional regulations |
