Product details
| Feature | Specification |
| Chipset | AMD B850 |
| CPU Support | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors, Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support | DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s, Supports Memory Overclocking and AMD EXPOTM, Dual-Channel mode, Non-ECC, Un-buffered memory, CUDIMM |
| Onboard Graphics | 1x HDMI™ (4K 60Hz), 1x DisplayPort (4K 60Hz) |
| Slots | 2x PCI-E x16, 1x PCI-E x1 |
| Audio | Realtek® ALC897, 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4), 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA; Supports RAID 0 and RAID 1 for M.2 NVMe |
| USB Ports | Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C <br> Rear: 4x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Realtek® 8125D 2.5G LAN |
| Wireless & Bluetooth | Wi-Fi 6E (2.4/5/6GHz), Bluetooth® 5.3 |
| LED Feature | 4x EZ Debug LED, 1x EZ Memory Detection LED |

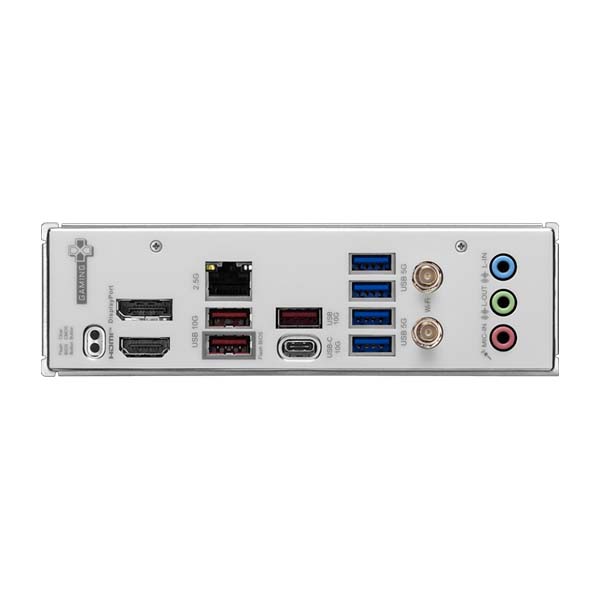

| Back Panel Ports | Clear CMOS Button, DisplayPort 1.4, 2.5G LAN, USB 10Gbps (Type-A), Wi-Fi / Bluetooth, HD Audio Connectors, Flash BIOS Button, HDMI™, USB 10Gbps (Type-C), USB 5Gbps (Type-A) |
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | ATX, 243.84mmx304.8mm |
| Note | Features, price, and specifications are subject to change without notice. Images are for representation only. |
