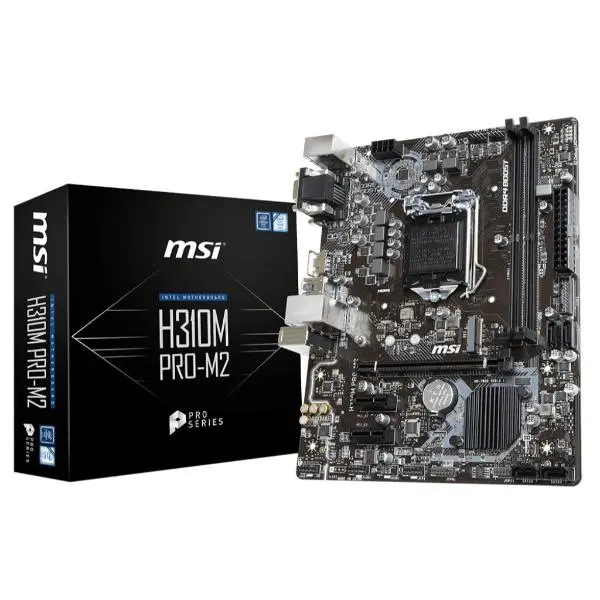

Msi H310M PRO-M2 Motherboard

0 Reviews
In stock

Original price was: ₹10,499.00.Current price is: ₹5,490.00.

(-48%)
  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666MHz
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • M.2 and NVMe support, up to 20 Gb/s using PCI-Express Gen2 x4.
  • EZ Debug LED: Easiest way to troubleshoot.
  • PCI-E Steel Slot: Protecting VGA cards against bending for better performance, stability and strength.
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block

Product details

Specifications

Processor Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Chipset Intel® H310 Chipset This chipset is ME11 firmware based and doesn’t feature SDA3.0
Memory
  • 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 2666/ 2400/ 2133 MHz
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Slots
  • 1 x PCIe 3.0 x16 slot
  • 2 x PCIe 2.0 x1 slots
Onboard Graphics
  • 1x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz1
  • 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1
  • 1x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz1

*No Display support when using the Processor model with suffix “F”

  1. Supports up to 2 displays simultaneously
Storage Intel® H310 Chipset

  • 4 x SATA 6Gb/s ports1
  • 1 x M.2 slot (Key M)
  • Support up to PCIe 2.0 x4 and SATA 6Gb/s
  • Supports 2242/ 2260 /2280 storage devices
  1. SATA1 port will be unavailable when an M.2 SATA SSD is installed in the M2_1 slot.
USB Intel® H310 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
  • 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
Audio Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio
LAN 1 x Intel I219-V Gigabit LAN controller
Internal connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 1 x Serial port connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper

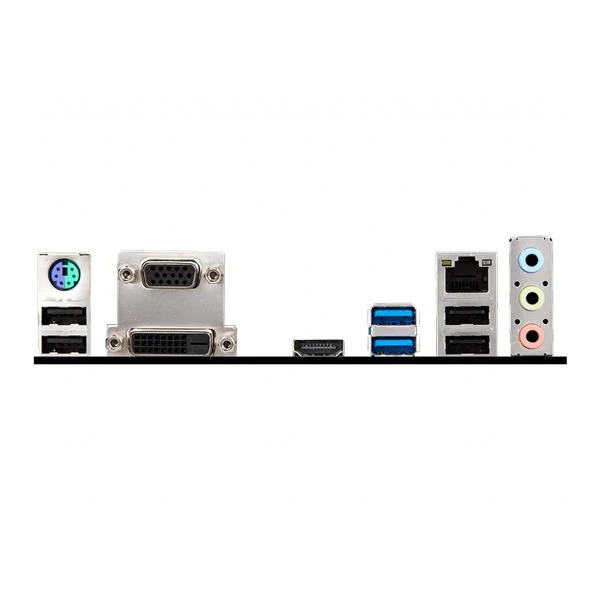

Back panel ports
  1. PS/2 Combo
  2. VGA
  3. HDMI
  4. USB 3.1 Gen1
  5. LAN
  6. HD Audio Connectors
  7. DVI-D
  8. USB 2.0
Dimensions
  • 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
  • m-ATX Form Factor
Mounting 6 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
