Product details
| Feature | Specification |
| CPU | |
| Chipset | AMD A520 |
| CPU Socket | AM4 |
| Memory | |
| Memory Slots | 2x 288-Pin |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MT/s |
| Maximum Capacity | 64 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Storage Expansion | |
| SATA | 4x SATA III |
| Storage Slots | 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
| RAID Support | RAID 0, 1, 10 (SATA) |
| Internal I/O | |
| Expansion Slots | 1x PCIe 3.0 x16, 2x PCIe 3.0 x1 |
| USB Headers | 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port), 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling | 1x 4-Pin CPU, 1x 4-Pin System |
| Power Connectors | 1x 24-Pin Mainboard, 1x 8-Pin ATX |
| Security | Chassis Intrusion, TPM Module |
| LED Header | 1x RGB |
| Diagnostics | Clear CMOS |
| Legacy | 1x Serial |

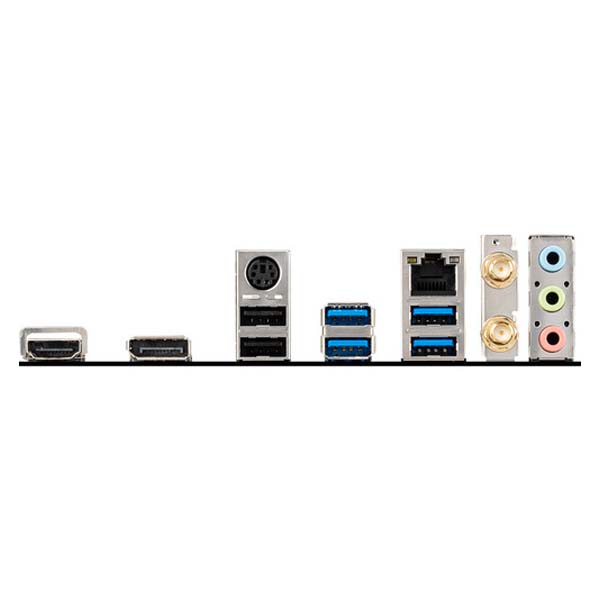

| Back Panel I/O | |
| USB | 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1), 2x USB-A (USB 2.0) |
| Display | 1x HDMI 1.4, 1x DisplayPort |
| Audio | 3x 1/8″ / 3.5 mm |
| Ethernet / Controller | 1x Realtek RTL8111H Gigabit |
| PS/2 | 1x PS/2 |
| Wi-Fi Antenna | 2x Connector |
| Wireless | |
| Bluetooth | 4.2 |
| Wi-Fi | Wi-Fi 5 (802.11ac) (MU-MIMO) |
| Physical | |
| Form Factor | Micro-ATX |
| Dimensions | 8.3 x 9.6″ / 21 x 24.4 cm |
| Software | |
| OS Compatibility | Windows 10 |
| Packaging Info | |
| Package Weight | 2.42 lb |
| Box Dimensions (LxWxH) | 11.1 x 10.7 x 2.7″ |
| Warranty | 3-Year Warranty |
| Note | Features, price, and specifications are subject to change without notice. Images are for representation only. |
