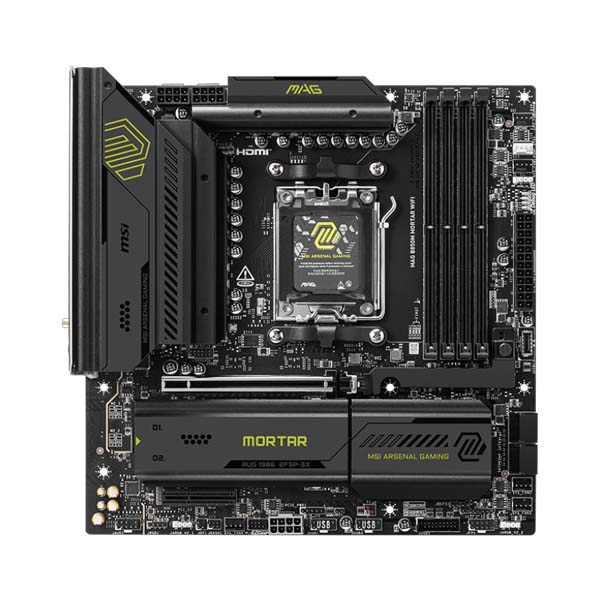

Name: MSI MAG B850M MORTAR Wi-Fi Motherboard
SKU: 17395
Availability: InStock

MSI MAG B850M MORTAR Wi-Fi Motherboard

Rated 0 out of 5

0 Reviews

In stock

(-61%)

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material

Product details

Chipset	AMD B850
CPU Support	AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket	AM5
Memory Slots	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Speed	DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Memory Overclocking	AMD EXPO™, Dual-Channel mode, Non-ECC, Un-buffered memory
Graphics	1x HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz (CPU dependent)
PCIe Slots	1x PCI-E x16 (PCIe 5.0), 1x PCI-E x4 (PCIe 4.0)
Audio	Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio
Storage	3x M.2 (PCIe 5.0/4.0), 4x SATA 6G
Multi-GPU Support	AMD MULTI-GPU Support
RAID Support	RAID 0, RAID 1, RAID 10 for SATA; RAID 0, RAID 1, RAID 5 for M.2 NVMe
USB Ports	4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 3x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front), 1x USB 20Gbps Type C (Rear)
LAN	Realtek® 8126-VB 5G LAN
Internal IO	Power connectors (ATX, CPU, PCIe), 4x System Fan, Front Panel, Chassis Intrusion, Front Audio, RGB headers, TPM 2.0
Wireless LAN & Bluetooth	Wi-Fi 7, MU-MIMO, Bluetooth® 5.4
LED Features	4x EZ Debug LED, 1x EZ Memory Detection LED
Operating System Support	Windows® 11 64-bit
PCB Info	mATX, 243.84mm x 243.84mm
