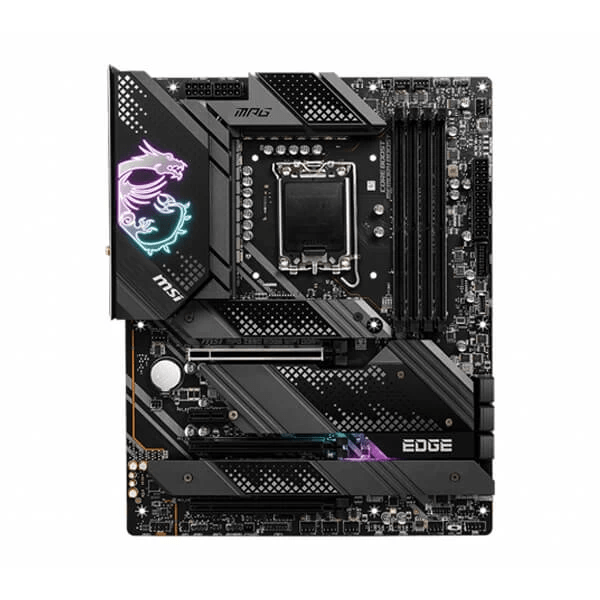

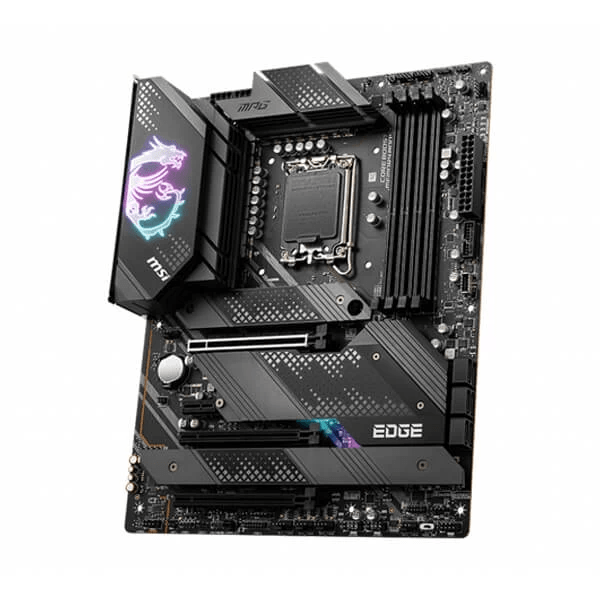

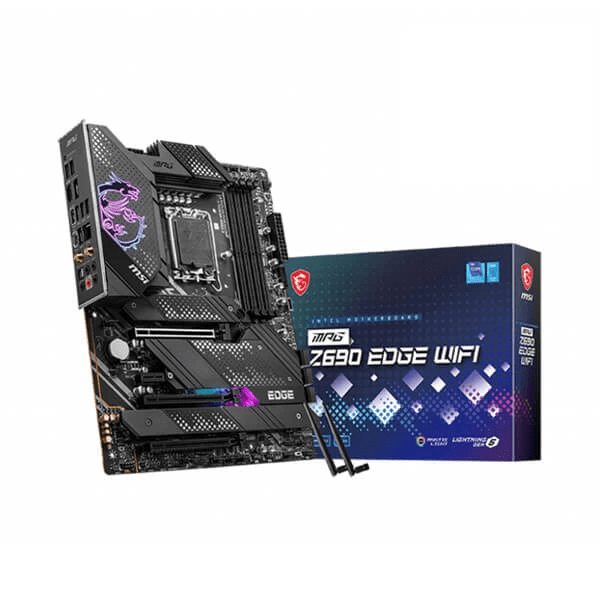

MSI MPG Z690 Edge WIFI DDR5 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors

• Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors 1
• Processor socket LGA1700

• 4x DDR5 memory slots, support up to 128GB1
• Supports 1R 4800 MHz, 2R 4000 MHz (by JEDEC & POR)1
• Max. overclocking frequency: 1
• DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5400+ MHz
• 2DPC 1R Max speed up to 4000+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

• 3x PCIe x16 slots
• PCI_E1 slot (From CPU)
• Supports PCIe 5.0 x16
• PCI_E3 & PCI_E4 slots (From Z690 chipset)
• Supports PCIe 3.0 x4
• 1x PCIe 3.0 x1 slot (From Z690 chipset

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1/ 2
• 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1/ 2

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• 6x SATA 6Gb/s ports
• SATA5~8 (From Z690 Chipset)
• SATAA~B (From ASMedia ASM1061)
• 2 x SATA 6Gb/s ports – SATAA & SATAB (From ASMedia ASM1061)
• 4x M.2 slots (Key M)
• M2_1 slot (From CPU)
• Supports PCIe 4.0 x4
• Supports 2260/ 2280/ 22110 storage devices
• M2_2 slot (From Z690 Chipset)
• Supports PCIe 4.0 x4
• Supports 2260/ 2280 storage devices
• M2_3 slot (From Z690 Chipset)
• Supports PCIe 4.0 x4
• Supports SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• M2_4 slot (From Z690 Chipset)
• Supports PCIe 4.0 x4
• Supports SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• M2_2~4 support Intel® Optane™ Memory
• Supports Intel® Smart Response Technology for Intel® Core™ processors

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices1
• Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

SATAA & SATAB do not support RAID function.

• 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
• 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel)
• 2x USB 2.0 Type-A ports on the back panel
• 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector

USB Hub-GL850G

• 4x USB 2.0 ports available through internal connectors

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz 1(160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.22, FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11. Bluetooth 5.2 will be ready in WIN10 21H1 and Windows11.

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 4x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1xTPM module connector
• 1x Clear CMOS jumper
• 1x Tuning controller connector
• 1x TBT connector (Supports RTD3)

• DisplayPort
• 2.5G LAN
• Wireless Antenna
• Audio Connectors
• Flash BIOS Button
• USB 2.0
• HDMI
• USB 3.2 Gen 2 10Gbps Type-A
• USB 3.2 Gen 2×2 20Gbps Type-C
• Optical S/PDIF Out

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
