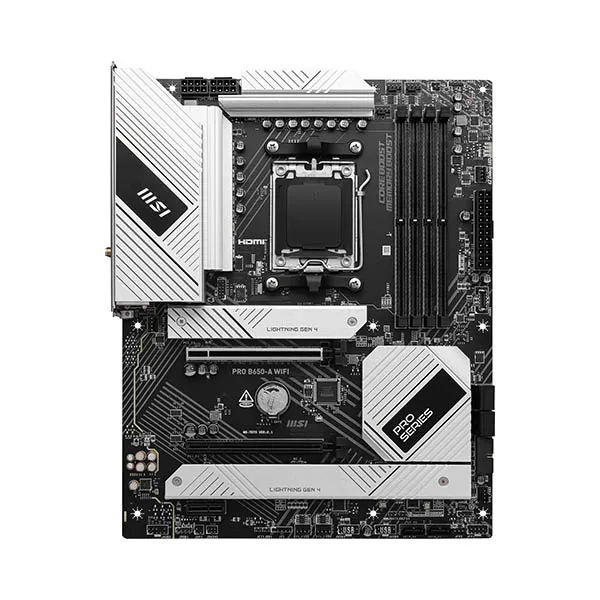

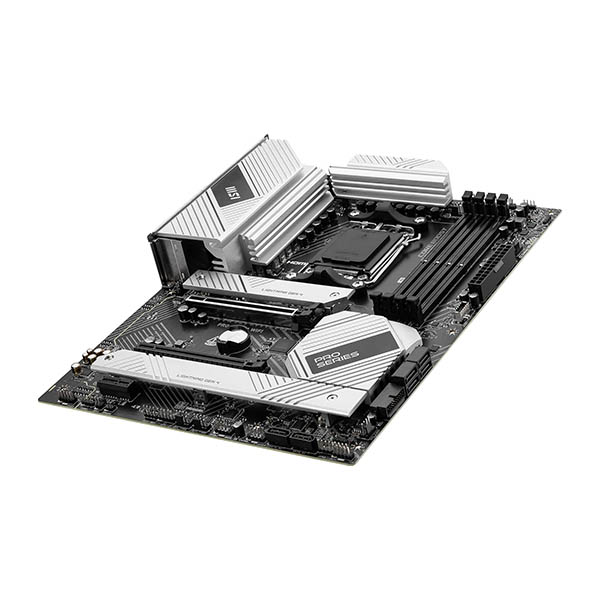

MSI PRO B650-A WIFI AM5 DDR5 ATX Motherboard

0 Reviews
In stock

Original price was: ₹33,999.00.Current price is: ₹16,799.00.

(-51%)
  • Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block

Product details

Brand MSI
Model PRO B650-A WIFI
Supported CPU
CPU Socket Type  AM5
CPU Type Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipsets
Chipset  AMD B650
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 4800
Maximum Memory Supported 256GB
Channel Supported  Dual Channel
ECC Supported Non-ECC
Buffer Supported Un-buffered
Memory Feature Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: – 1DPC 1R Max speed up to 7200+ MHz – 1DPC 2R Max speed up to 6000+ MHz – 2DPC 1R Max speed up to 6000+ MHz – 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Expansion Slots
PCI Express 4.0 x16 PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI Express x4 PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1 PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
SATA RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset  Realtek ALC897
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek 8125BG
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 6E
Bluetooth Bluetooth 5.3
Rear Panel Ports

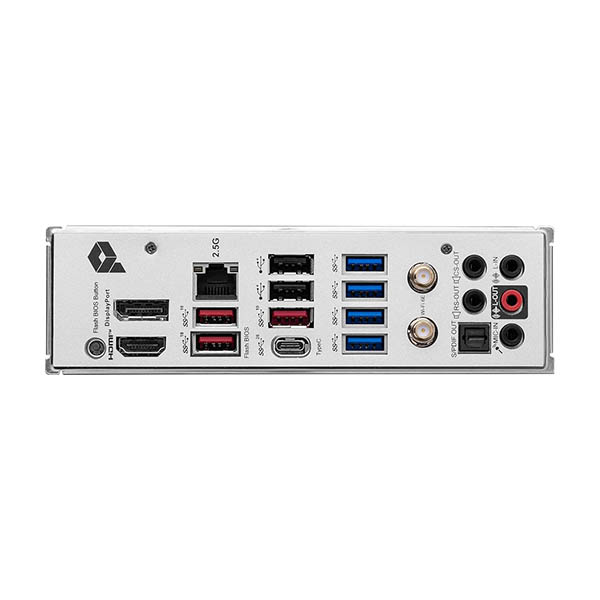

Back I/O Ports 4 x USB 3.2 Gen 2 10Gbps (Type-A) 4 x USB 3.2 Gen 1 5Gbps (Type-A) 1 x 2.5G LAN 2 x Wi-Fi / Bluetooth 3 x Audio connectors 1 x Flash BIOS Button 1 x DisplayPort 1 x HDMI
Internal I/O Connectors
Onboard USB 4 x USB 2.0 ports 2 x USB 5Gbps Type A ports 1 x USB 10Gbps Type C ports
Other Connectors 1 x CPU Fan 1 x Pump Fan 3 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 1 x Tuning Controller connector(JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 2 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0)
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6″ x 9.6″
Power Pin 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR)
Windows 11 Compatibility
Windows 11 Support for Windows 11 64-bit, Windows 10 64-bit
