Name: MSI Pro H610M-C EX DDR4 Intel Motherboard
SKU: 17494
Availability: InStock

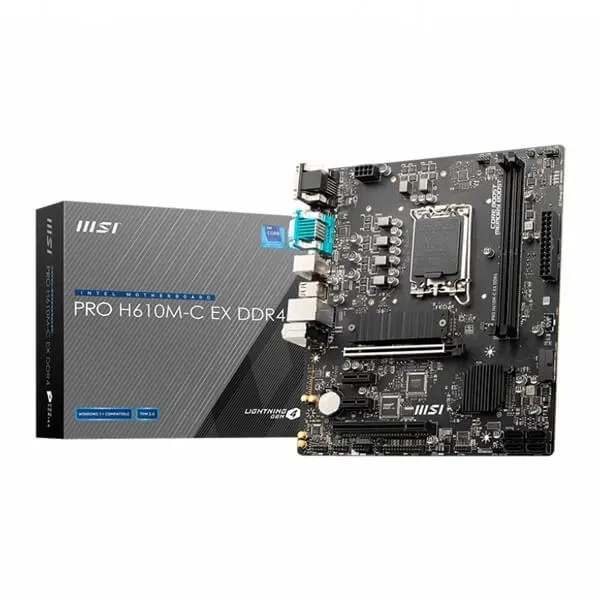

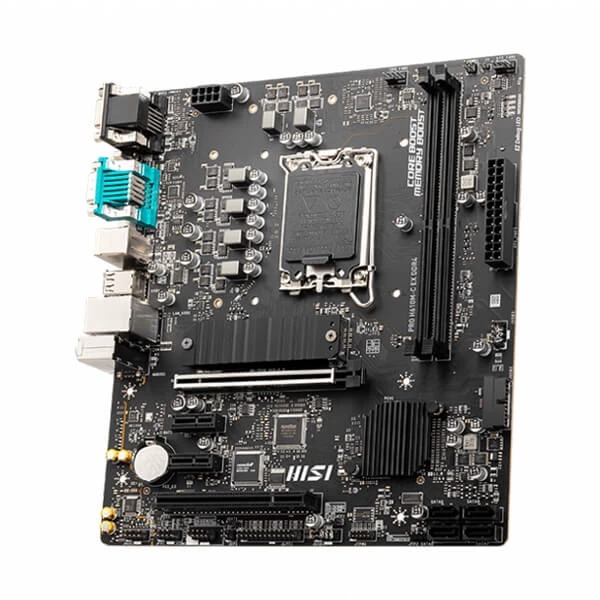

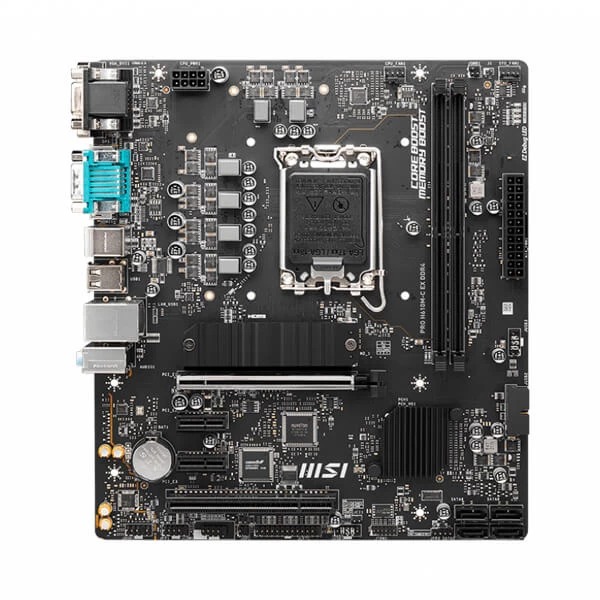

MSI Pro H610M-C EX DDR4 Intel Motherboard

Rated 0 out of 5

0 Reviews

In stock

(-44%)

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

Product details

Processor	Supports 12th Gen Intel® Core™ Processors Processor socket LGA1700
Chipset	Intel® H610 Chipset
Memory	2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Expansion Slot	1x PCIe x16 slot, PCI_E1 (from CPU Support up to PCIe 4.0 for 12th Gen Intel® CPU 2x PCIe x1 slots (from H610 chipset) , Support up to PCIe 3.0 1x PCI slot (from H610 chipset)
Onboard Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz 1x DVI-D port, supporting a maximum resolution of 1920×1200 60Hz
Storage	Intel® H610 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (M2_1 slot) Supports up to PCIe 3.0 x 4 Supports 2242/ 2260/ 2280 storage devices
LAN	1x Realtek® RTL8111H 1Gbps LAN controller
USB	Intel® H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 Type-A ports available through the internal connectors) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audi
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connector (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connecto
Back panel ports	VGA COM Port Mouse LAN Port Audio Connectors DVI-D DisplayPort HDMI Keyboard USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A)
Dimensions	M ATX Form Factor 9.6 in. x 8.7 in. (24.4 cm x 22 cm)
Mounting	6 mounting holes
Operating System	Support for Windows® 10 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
