Name: Noctua NH-D9 TR5-SP6 4U 92mm CPU Air Cooler (Brown)
SKU: 17088
Availability: InStock

Noctua NH-D9 TR5-SP6 4U 92mm CPU Air Cooler (Brown)

Rated 0 out of 5

0 Reviews

In stock

(-49%)

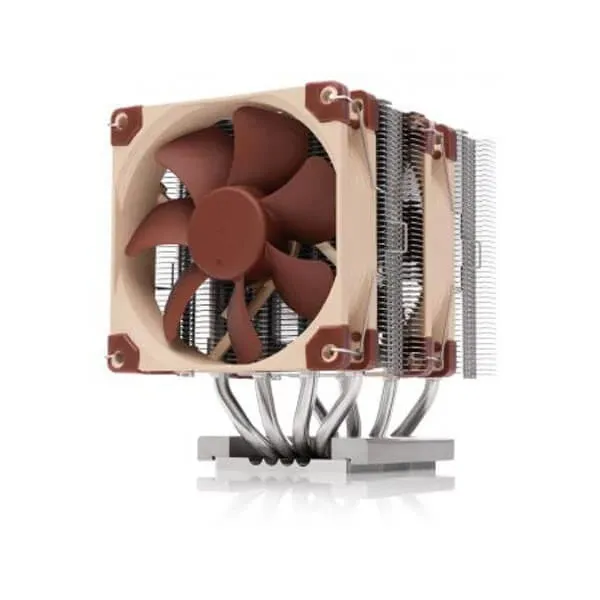

Compact 92mm size (134mm height) for excellent PCIe compatibility and 4U support, high cooling performance thanks to 6 heatpipes, dual tower design and two NF-A9 premium fans, ideal for quiet 4U servers
Supports AMD SP6 socket for Epyc 8004 line server CPUs as well as sTR5 socket for 7000 series Threadripper (Pro) HEDT and workstations processors (TRX50/WRX90 chipsets, e.g. 7995WX, 7985WX, 7980X, 7970X, 7960X)
Airflow path parallel to the long axis of the socket, ideal for systems where the exhaust fans of the chassis are in this direction

Product details

Model name	NH-D9-TR5-SP6-4U
Cooler Specification
Socket compatibility	AMD sTR5, SP6
Height (without fan)	134 mm
Width (without fan)	95 mm
Depth (without fan)	95 mm
Weight (without fan)	584 g
Height (with fan)	134 mm
Width (with fan)	95 mm
Depth (with fan)	120 mm
Weight (with fan)	769 g
Material	Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR	134
Max. TDP	see NSPR
Fan compatibility	92x92x25mm

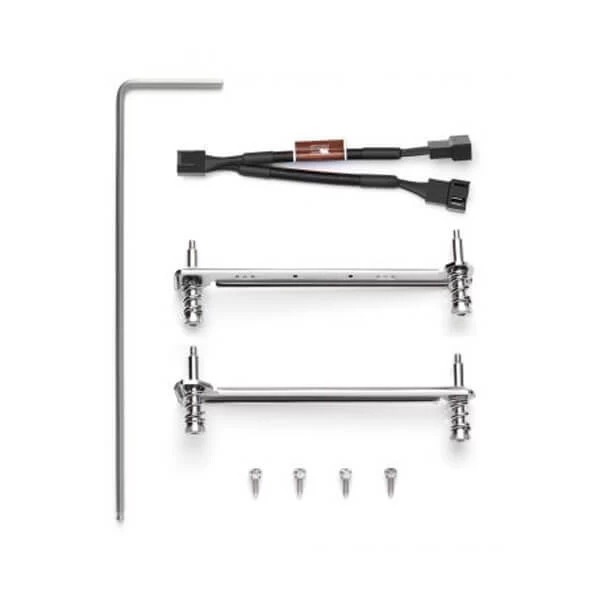

Scope of delivery	2x NF-A9 HS-PWM premium fan NA-YC1 4-pin PWM splitter cable NT-H2 high-grade thermal compound (pre-applied) SecuFirm2™ mounting kit for sTR5/SP6 NM-SMT3 mounting tool for mounting bracket installation
Warranty	6 Years
FAN Specification
Model	2x Noctua NF-A9 HS-PWM
Bearing	SSO2
Max. rotational speed (+/- 10%)	2500 RPM
Min. rotational speed @ 20% PWM (+/-20%)	400 RPM
Max. airflow	96,3 m³/h
Max. acoustical noise	30,6 dB(A)
Input power (max.)	1,68 W
Voltage range	12 V
MTTF	> 150.000 h
Note	*** Features, Price, Specifications are subject to change without notice.
