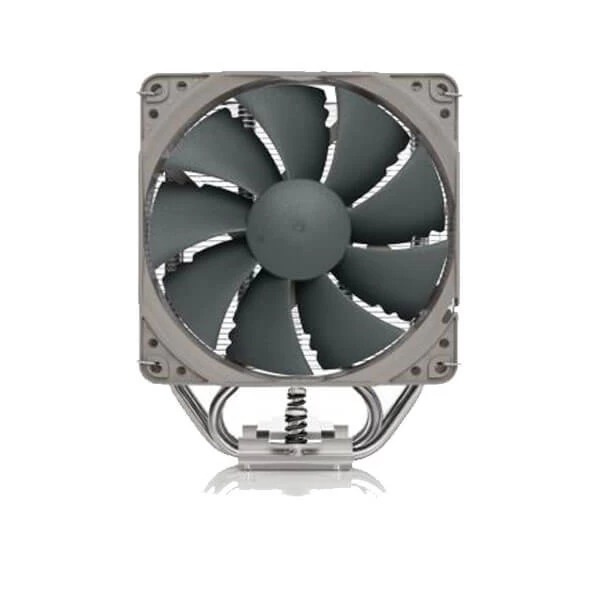

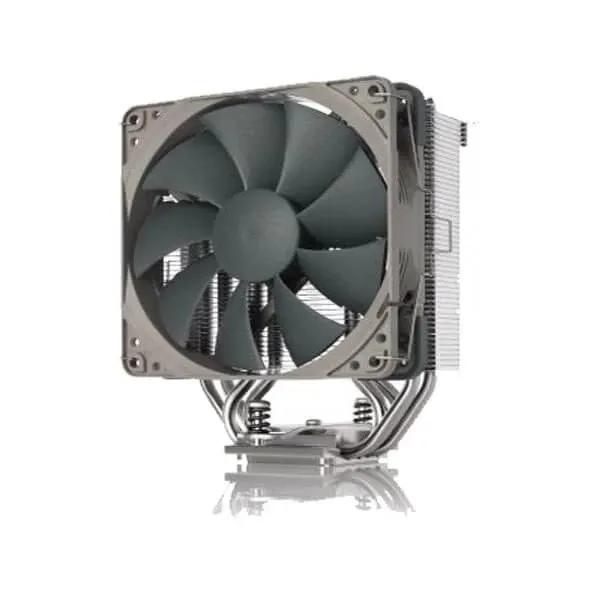

Name: Noctua NH-U12S Redux CPU Air Cooler
SKU: 17256
Availability: InStock

Noctua NH-U12S Redux CPU Air Cooler

Rated 0 out of 5

0 Reviews

In stock

(-35%)

Classic 120mm slim-tower design combines outstanding cooling performance with excellent case-, RAM- and PCIe-compatibility
Does not overhang the RAM or PCIe slots on most current motherboards
Highly optimised NF-F12 120mm Focused Flow fan with PWM support and Low-Noise Adaptor for automatic speed control and ultra-quiet operation
Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system for easy installation on Intel LGA1700 (LGA17xx family) LGA1200, LGA115x, LGA2011, LGA2066 and AMD AM4 & AM5
Renowned Noctua quality backed up by 6-year manufacturer’s warranty, deluxe choice for Intel Core i9, i7, i5, i3 (e.g. 12900K, 12700K, 12600K) and AMD Ryzen (e.g. 5800X3D, 5700X, 5600, 5500)

Product details

Socket compatibility	Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4, AM5
Height (without fan)	158 mm
Width (without fan)	125 mm
Depth (without fan)	45 mm
Height (with fan)	158 mm
Width (with fan)	125 mm
Depth (with fan)	71 mm
Weight (with fan)	710 g
Material	Nickel plated Copper (base and heat-pipes), aluminium (cooling fins)
NSPR	129
Max. TDP	120x120x25
Scope of delivery	NH-U12S redux heatsink NF-P12 redux-1700 PWM fan 4x NA-AVP1 chromax.grey anti-vibration pads Fan mounting clips (one pair) NT-H1 high-grade thermal compound (pre-applied) SecuFirm2™ mounting kit
FAN Specification
Model	NF-P12 redux-1700 PWM
Bearing	SSO
Max. rotational speed (+/- 10%)	1700 RPM
Min. rotational speed @ 20% PWM (+/-20%)	450 RPM
Max. airflow	120,2 m³/h
Max. acoustical noise	25,1 dB(A)
Voltage range	12 V
MTTF	> 150.000 h
Warranty	6 Years
Note	***Features, Price and Specifications are subject to change without notice.
