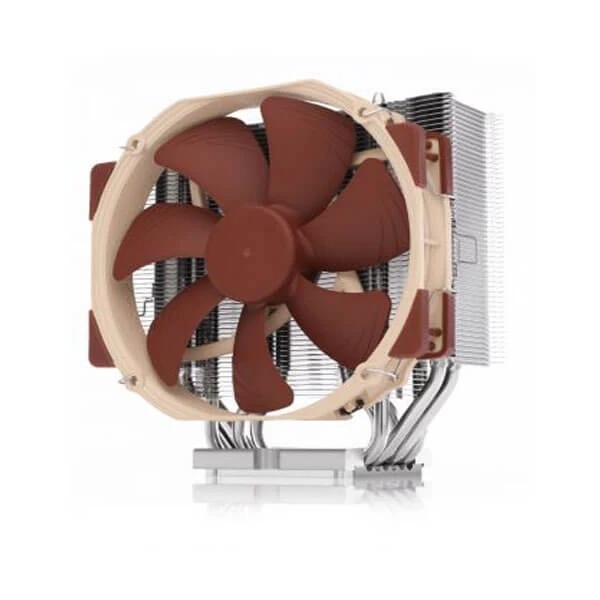

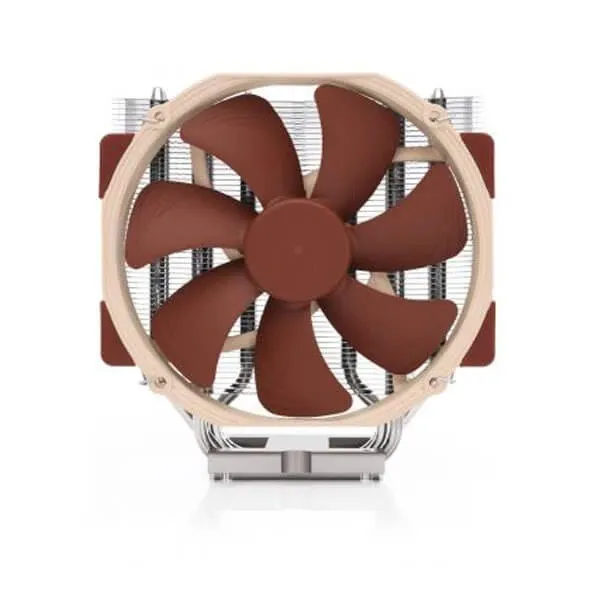

Name: Noctua NH-U14S DX-4189 140mm CPU Air Cooler for Intel Xeon LGA4189 (Brown)
SKU: 17089
Availability: InStock

Noctua NH-U14S DX-4189 140mm CPU Air Cooler for Intel Xeon LGA4189 (Brown)

Rated 0 out of 5

0 Reviews

In stock

(-75%)

6 heatpipes, 140mm size and premium grade 140mm fan for superb quiet cooling efficiency, ideal for near inaudible workstations in noise sensitive applications (audio/video production, engineering, etc.)
Supports LGA4189-4 (P4) sockets for 3rd generation Intel Xeon Scalable (Platinum, Gold, Silver or Bronze, Ice Lake-SP/Whitley) and W-3300 series (Ice Lake-64L) processors
Award-winning NF-A15 fan supports PWM for automatic speed control through the motherboard: silent at idle, full CFM performance when necessary

Product details

Model Number	NH-U14S DX-4189
Cooler Specification
Socket compatibility	Intel Xeon LGA4189
Height (without fan)	165 mm
Width (without fan)	150 mm
Depth (without fan)	52 mm
Weight (without fan)	797 g
Height (with fan)	165 mm
Width (with fan)	150 mm
Depth (with fan)	78 mm
Weight (with fan)	957 g
Material	Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR	162
Fan compatibility	140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

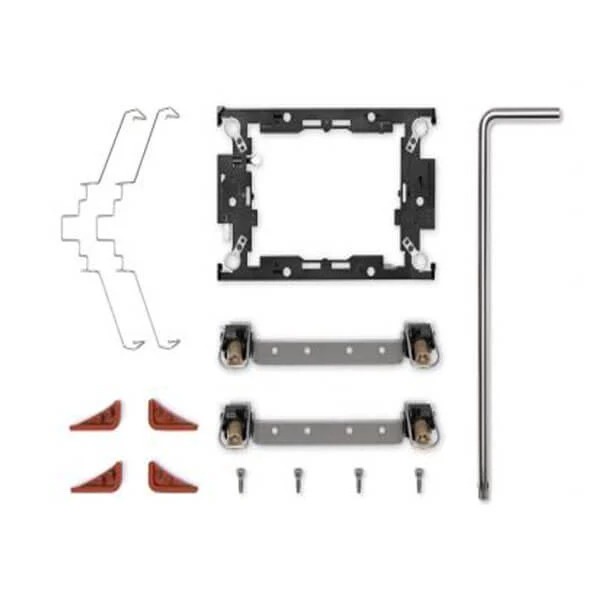

Scope of delivery	NF-A15 HS-PWM premium fan Anti-vibration pads and fan-clips for second NF-A15 NT-H1 high-grade thermal compound (pre-applied) SecuFirm2™ mounting kit for LGA4189 CPU carrier frame for LGA4189-4 (P4) NM-SMT5 Torx® T30 mounting tool Noctua metal case-badge
Warranty	6 Years
FAN Specification
Model	Noctua NF-A15 HS-PWM
Bearing	SSO2
Max. rotational speed (+/- 10%)	1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)	300 RPM
Min. rotational speed @ 20% PWM (+/-20%)	600 RPM
Max. airflow	140,2 m³/h
Max. acoustical noise	24,6 dB(A)
Input power (max.)	1,56 W
Voltage range	12 V
MTTF	> 150.000 h
Note	*** Features, Price, Specifications are subject to change without notice.
