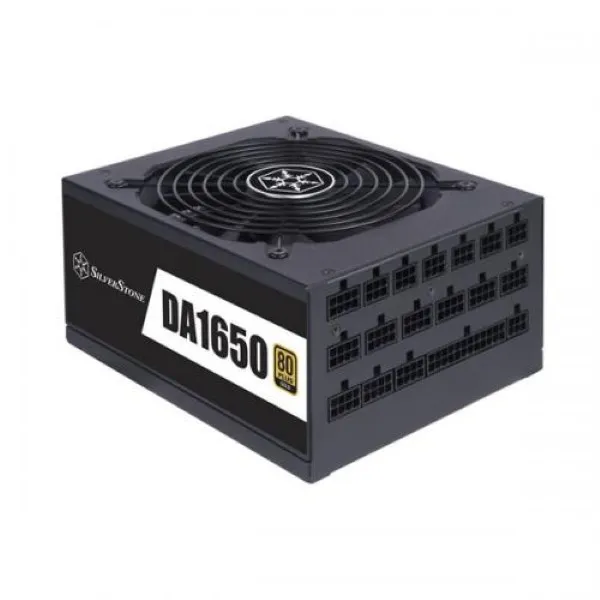

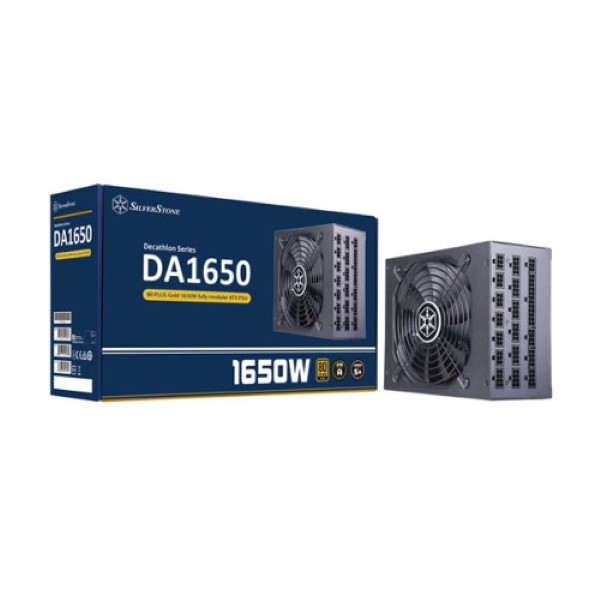

Name: SilverStone DA1650-G 1650W 80 Plus Gold Fully Modular Power Supply
SKU: 16178
Availability: InStock

SilverStone DA1650-G 1650W 80 Plus Gold Fully Modular Power Supply

Rated 0 out of 5

0 Reviews

In stock

(-26%)

High efficiency with 80 PLUS certification
24/7 continuous power output with 50℃ operating temperature

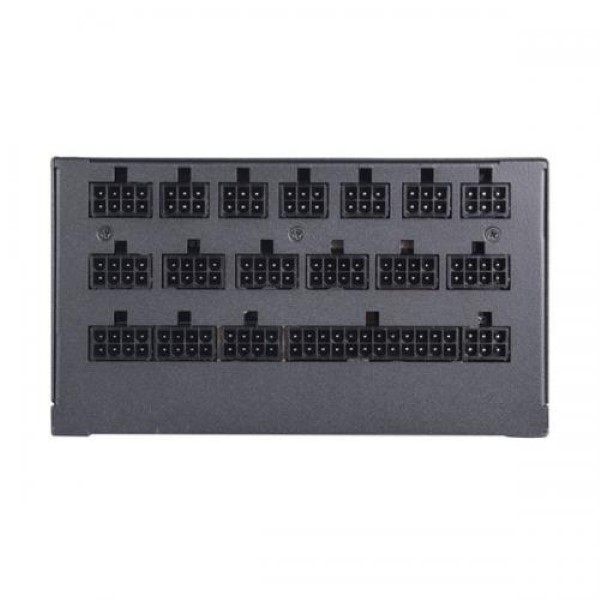

100% modular design with universal EPS / PCIe connector interface for maximum flexibility
Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function
Strict ±2% voltage regulation and low ripple & noise
All Japanese capacitors
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity
Flat cables have much greater flexibility to allow for tighter folding and management of cables
180mm depth sets new standard for 1650W+ PSUs with modular cables
Powerful single +12V rail design, perfect for high-end components, upgrades and overclocking
±2% regulation and low ripple & noise performance for high stability
Ultra silent 135mm FDB fan with intelligent RPM control provides cool performance at higher loading conditions and silent operation during idle to low loading conditions. Fanless mode operation works up to 30% loading (495W)

Product details

Model No.	SST-DA1650-G
Max. DC Output	1650W
Power density	711W per liter
Color	Black.（Lead-Free Paint）
Combined +3.3V & +5V	130W
Combined +12V	1650W
Input Voltage	90 ~ 264 V
Input Frequency Range	47Hz~63Hz
PFC	Active PFC（PF>0.9 at full load)
Efficiency	87%~90%（at 20%~100% loading)
MTBF	100,000 hours
Operating temperature	0°C ~ 40°C
Protection	Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection
Connectors	1 x 24 / 20-Pin motherboard connector (600mm) 4 x 8 / 4-Pin EPS / ATX 12V connector (“750mm” x 4) 8 x 8 / 6-Pin PCIe connector (“600mm / 150mm” x 4) 4 x 8 / 6-Pin PCIe connector (“600mm” x 4) 16 x SATA connector (“600mm / 150mm / 150mm / 150mm” x 4) 6 x 4-Pin Peripheral connector (“600mm / 150mm / 150mm” x 2) 1 x 4-Pin Floppy adapter connector (100mm)
Cooling System	Single 135mm FDB fan
Form factor	ATX / PS/2
Noise Level	0dBA ~ 36dBA
Dimension	150 mm (W) x 86 mm (H) x 180 mm (D) 5.91″ (W) x 3.39″ (H) x 7.09″ (D)
Weight	2.09 kg
Certification	80 PLUS Gold
Other	GPU Support list Compatible with ATX12V v2.4
Warranty	5 Years
Note	***Features, Price and Specifications are subject to change without notice.
