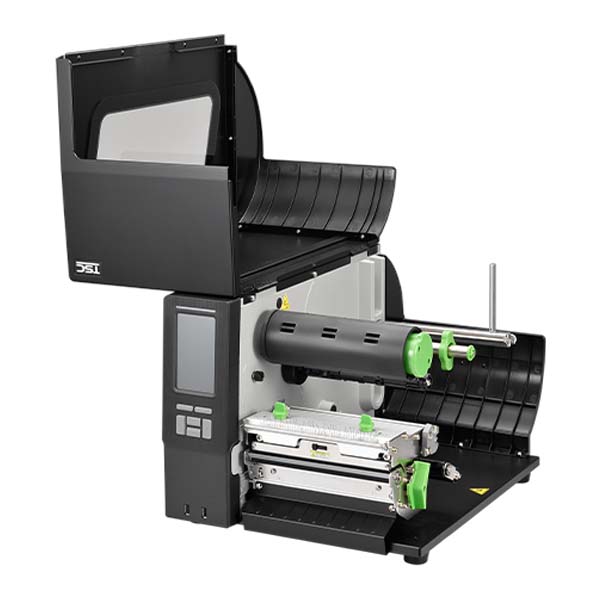

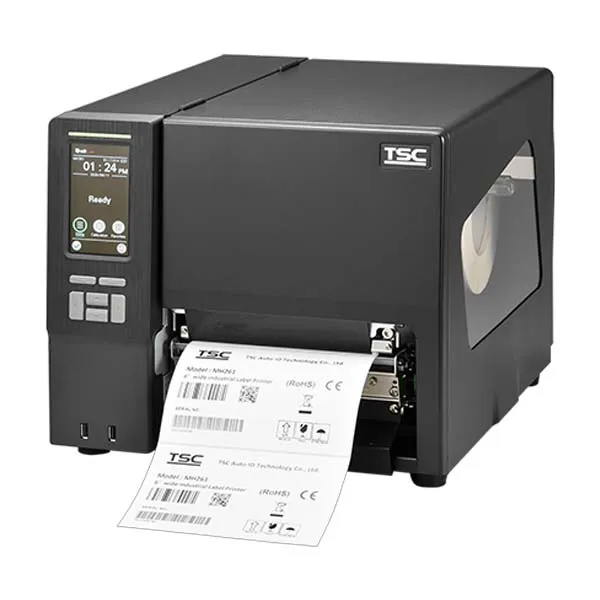

TSC MH261T Thermal Transfer Label Printer
Original price was: ₹254,999.00.₹158,499.00Current price is: ₹158,499.00.
(-38%)- Sophisticated TSC Sense Care
- Dynamic Remote Printer Management
- Multi-Connectivity
- Highly Adaptable
- Brilliant User Experience
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Resolution | 8 dots/mm (203 DPI) |
| Printing method | Thermal Transfer and Direct Thermal |
| Max. print speed | 305 mm (12”)/second |
| Max. print width | 168 mm (6.61”) |
| Max. print length | 14,732 mm (580“) |
| Enclosure | Die-cast print mechanism with a large clear media view window |
| Physical dimension | 357 mm (W) x 313 mm (H) x 514 mm (D) 14.05” (W) x 12.32 (H) x 20.24” (D) |
| Weight | 17.8 kg (39.24 lbs) |
| Label roll capacity | 208.3 mm (8.2”) O.D. |
| Internal rewinder (full roll) | Internal rewinder kit (5” O.D.) (dealer option) |
| Ribbon | 450 m long, max. O.D. 81 mm, 1“ core (Ink coated outside or inside) |
| Ribbon width | 50.8 mm ~ 178 mm (2” ~ 7”) |
| Processor | 32-bit RISC CPU |
| Memory | • 512MB Flash memory • 256MB SDRAM • microSD Flash memory card reader for Flash memory expansion, up to 32 GB |
| Interface | • RS-232 • Parallel • USB 2.0 (High-speed mode) • Internal Ethernet, 10/100 Mbps • USB host *2 (Front side), for scanner or PC keyboard • GPIO (DB15F) (dealer option) • Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option) |
| Power | Auto-sensing power supply • Input: AC 100-240V, 4-2A, 50-60Hz • Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W |
| LCD display/ Operation buttons | • Multi-language selectable • 6 operation buttons • 1 LED (with 2 LEDs Green & Red) |
| LCD | 4.3” color display, 480 x 272 pixel; Resistive touch screen |
| Sensors | • Gap transmissive sensor (Position adjustable) • Black mark reflective sensor (Bottom black mark sensor, Position adjustable) • Head open sensor • Ribbon encoder sensor • Ribbon end sensor |
| Real time clock | Standard |
| Internal font | • 8 alpha-numeric bitmap fonts • Monotype Image® true type font engine with CG Triumvirate Bold Condensed scalable font |
| Barcode | 1D barcode Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post 2D barcode PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Font & barcode rotation | 0, 90, 180, 270 degree |
| Printer language | TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL) |
| Media type | Continuous, die-cut, black mark (Bottom side black mark only), fan-fold, notch (outside wound) |
| Media width | 50.8 ~ 172.7 mm (2“~ 6.8“) |
| Media thickness | 0.06 ~ 0.268 mm (2.36~ 11.02 mil) |
| Media core diameter | 3.81 mm / 76.2 mm (1.5”/ 3”) |
| Label length | 10 ~14,732 mm (0.39“~ 580“) |
| Environment condition | • Operation: 0~40?C (32 ~104?F), 25~85% non-condensing • Storage: -40 ~60 ?C (-40 ~140?F), 10~90% non-condensing |
| Safety regulation | FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV, CCC, KC, BIS, BSMI, EAC, Argentina S mark, Mexico CoC, ENERGY STAR® |
| Environmental concern | Comply with RoHS, WEEE |
| Accessories | • Windows labelling software CD disk • Quick start guide • USB port cable • Power cord |
| Limited warranty | • Printer: 2 years • Print head: 25 km (1 million inches) or 12 months which comes first • Platen: 50 km (2 million inches) or 12 months which comes first |
| Dealer option | • GPIO (DB15F) • Heavy-duty cutter • 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (including slot-in housing) * • Peel-off kit • Internal rewinder kit (5” O.D.) |
| User option | • KP-200 Plus keyboard display unit |
