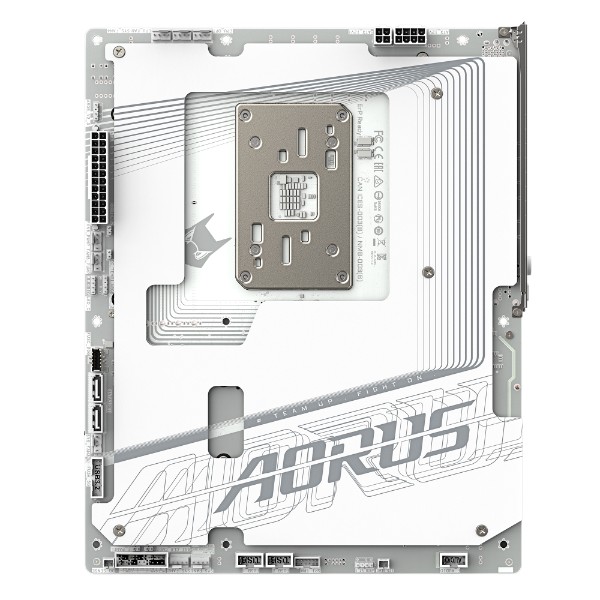

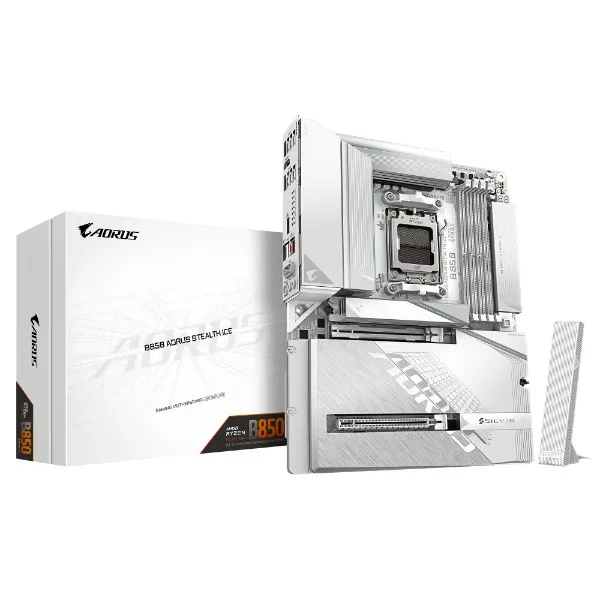

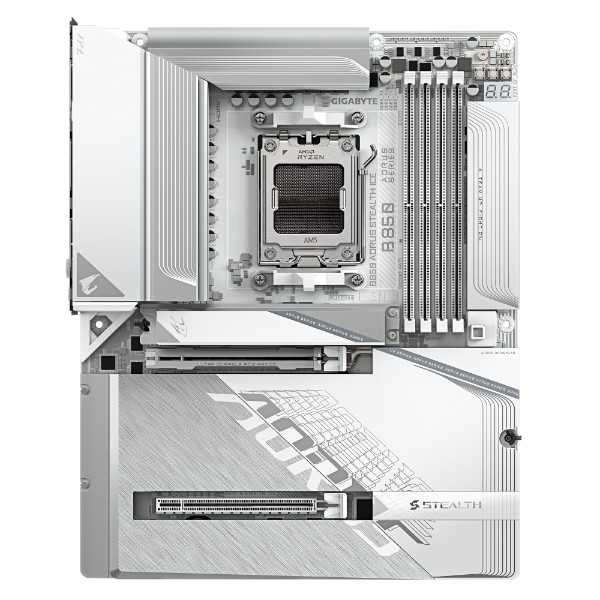

Gigabyte B850 AORUS STEALTH ICE Motherboard

• AMD Socket AM5, support for: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• (Go to GIGABYTE’s website for the latest CPU support list.)

• Support for DDR5 8200(O.C) down to 4400 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM modules
• Support for AMD EXPO™ & Extreme Memory Profile (XMP)

• 1 x HDMI port, max resolution 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR)

(Graphics specifications may vary depending on CPU support.)

• Realtek® ALC1220 CODEC
• High Definition Audio, 2/4/5.1/7.1-channel
• Support for S/PDIF Out
• Back panel line out jack supports DSD audio

• 802.11a/b/g/n/ac/ax/be, supporting 2.4/5/6 GHz bands
• BLUETOOTH 5.4
• Support for 11be 160MHz wireless standard
• * Wi-Fi 7 requires Windows 11 SV3 (no driver for Windows 10).

• 1 x PCI Express x16 slot (PCIEX16)
  • Ryzen™ 9000/7000 Series: PCIe 5.0 x16 mode
  • Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8 mode
  • Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4 mode

Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 at x4 (PCIEX4)
• * PCIEX4 shares bandwidth with the M2D_SB M.2 connector.

• 1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000) or PCIe 4.0 x4/x2 (Ryzen 8000)
• 1 x M.2 (M2B_CPU): PCIe 5.0 x4/x2 (Ryzen 9000/7000) or PCIe 4.0 x4/x2 (Ryzen 8000-Phoenix 1)

Chipset:

• 2 x M.2 (M2C_SB, M2D_SB): PCIe 4.0 x4/x2

SATA & RAID:

• 2 x SATA 6Gb/s connectors
• RAID 0, 1, 5, 10 for NVMe SSDs (RAID 5 requires Ryzen 9000)
• RAID 0, 1 for SATA devices

• 1 x USB Type-C® (back panel), USB 3.2 Gen 2
• 4 x USB 3.2 Gen 1 (back panel, via Hub)
• 4 x USB 2.0/1.1 (back panel, via Hub)

Chipset:

• 1 x USB Type-C® (internal header), USB 3.2 Gen 2×2
• 2 x USB 3.2 Gen 2 Type-A (red, back panel)
• 2 x USB 3.2 Gen 1 (internal header)
• 4 x USB 2.0/1.1 (internal headers)

• 1 x 24-pin ATX main power & 1 x 8-pin + 1 x 4-pin ATX 12V power
• Fan Headers: 1x CPU, 1x CPU/Pump, 4x System, 2x System/Pump
• RGB Headers: 3x Addressable Gen2, 1x RGB LED
• 4 x M.2 Socket 3, 2 x SATA 6Gb/s
• Front panel, Front audio, Noise detection headers
• 1 x USB Type-C® (USB 3.2 Gen 2×2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 headers
• 1 x TPM header, 2 x Temperature sensor headers
• 1 x Q-Flash Plus button, 1 x power button, 1 x reset button
• 1 x reset jumper, 1 x Clear CMOS jumper

• 1 x HDMI Port, 2 x Wi-Fi Antenna Connectors
• 1 x USB Type-C® (USB 3.2 Gen 2)
• 2 x USB 3.2 Gen 2 Type-A (red)
• 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 1 x Optical S/PDIF Out, 2 x Audio Jacks
